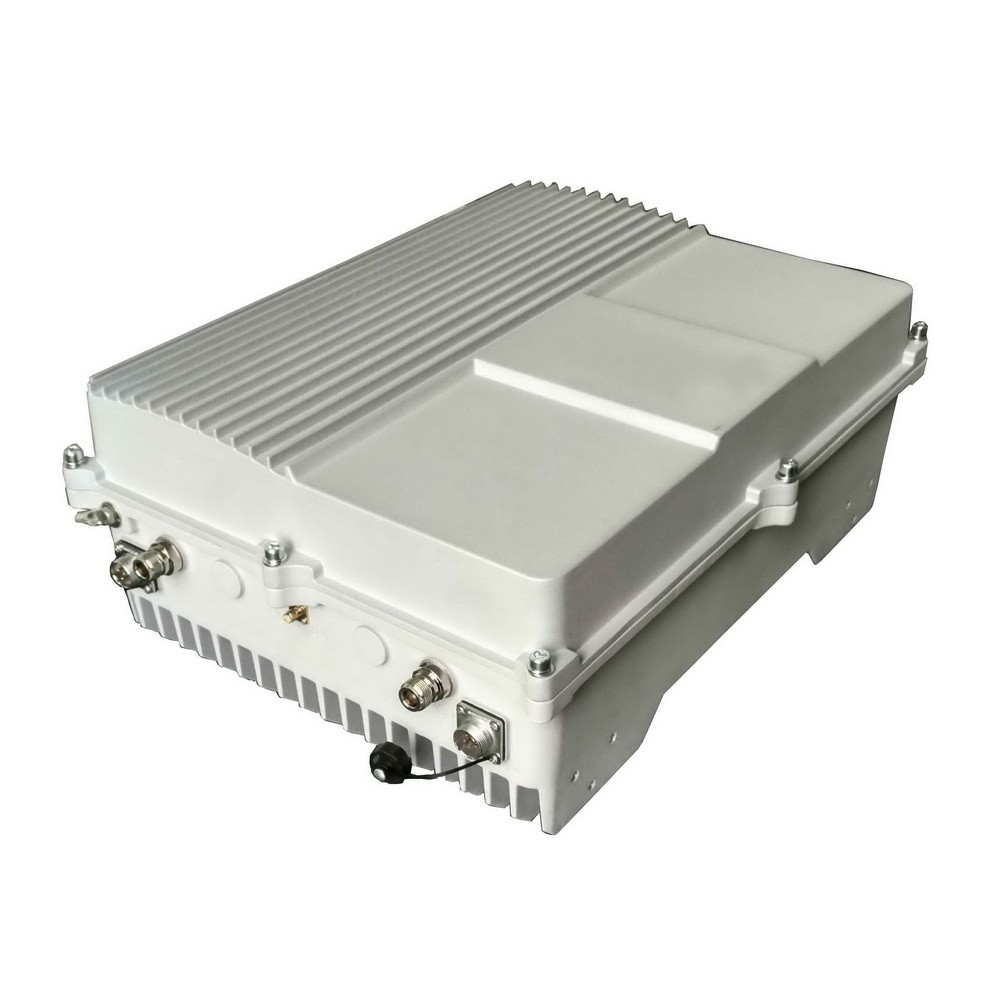

Dual-Band CDMA/GSM/DCS&WCDMA In-Line Repeater/ Trunk Amplifier
Model: KR-4345CW/ KR-4345CW/ KR-4345DW
Introductions:
The Dual-Band CDMA800/GSM900/DCS1800&WCDMA In-Line Repeater/ Trunk Amplifier provides an affordable solution to solve the indoor signal coverage problems in both DCS1800&WCDMA system due to signal fading and attenuation caused by architecture obstacles.
Features:
Support CDMA/GSM/DCS &WCDMA system;
Using the common RF cables to guarantee the even distribution of indoor signals and minimize the construction influence and user investment;
Multiple data transmission modes (RS-485, PSTN, GSM Modem, etc.); perfect system monitoring functions;
Centrally-controlled system monitoring function available; providing one interface for the monitoring of all equipment in the entire distribution system
Applications:
To expand signal coverage or fill signal blind area where signal is weak or unavailable.
Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots, etc.
Specifications:
Items |
CDMA800/ GSM900/ DCS1800 |
WCDMA |
|||
Working Frequency (customized) |
Uplink |
824-849MHz/ 890-915MHZ 1710~1785 MHz(customized) |
1920~1980 MHz(customized) |
||
Downlink |
869-894MHz/ 935-960MHz 1805~1880MHz(customized) |
2110~2170 MHz(customized) |
|||
Max Output Power |
43dBm/0dBm |
43dBm/0dBm |
|||
Gain |
45dB |
||||
Range for gain regulation |
≤ 25dB |
||||
Step for gain regulation |
1dB |
||||
ALC&AGC |
With every increase of 10dB in input level,output power variation must be with in 2 dB |
||||
Spurious Emission |
Within working band |
≤ -15dBm/30kHz |
Comply with 3GPP TS 25.106 V6.0.0 |
||
Out of working band (∆f > 2.5MHz) |
9kHz~1GHz: ≤ -36dBm/30kHz |
||||
1GHz~12.75GHz: ≤ -30dBm/30kHz |
|||||
Inter-Modulation Attenuation |
≤ -40dBc / 30kHz (measured under rated output power) |
Comply with 3GPP TS 25.106 V6.0.0 |
|||
In-band Ripple |
≤ 4dB |
≤ 4dB p-p / 3.84 MHz |
|||
Noise Figure(Uplink) |
≤ 5dB |
≤ 5dB |
|||
Adjacent Channel Power Ratio (ACPR) |
P ≥ 31 dBm |
-- |
(Offset 5MHz) ≤ 49dBc |
||
P ≥ 31 dBm |
(Offset 10MHz) ≤ 54dBc |
||||
System Delay |
|
||||
Out-of-Band Gain |
2.7 ≤ f offset < 3.5 MHz |
-- |
≤ 60dB |
||
3.5 ≤ f offset < 7.5 MHz |
≤ 45dB |
||||
7.5 ≤ f offset < 12.5 MHz |
≤ 45dB |
||||
12.5 ≤ f offset |
≤ 30dB |
||||
Peak Code Domain Error (PCDE) |
-- |
≤ -35dB |
|||
I/O Impedance |
50Ω |
||||
RF Connector |
N-Type (Female) |
||||
Temperature Range |
Operation:-25°C~ +55°C/ Storage:-30°C~ +60°C |
||||
Relative HumidityRange |
≤ 95% (non condensing) |
||||
Power Supply (customized) |
AC 220V, 50Hz |
||||
Backup Power Supply (optional) |
4 hours |
||||
Dimensions |
630*400*230mm |
||||
Weight |
35kg |
||||
Indication LED |
Power supply, Alarm, state |
||||
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() | |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
