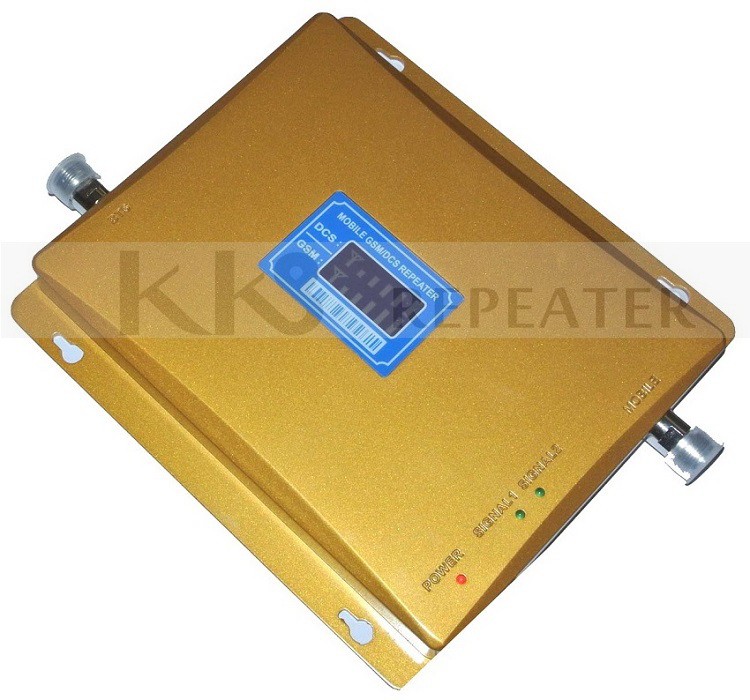

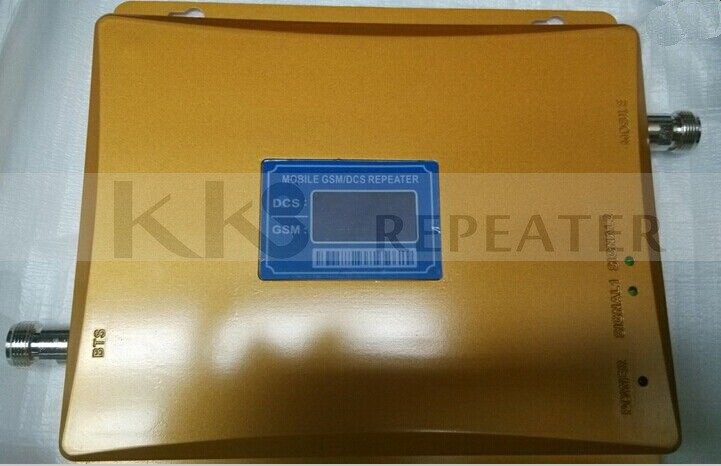

23dBm Dual-Band GSM&DCS Mobile Signal Booster
Model: KR-2365GD

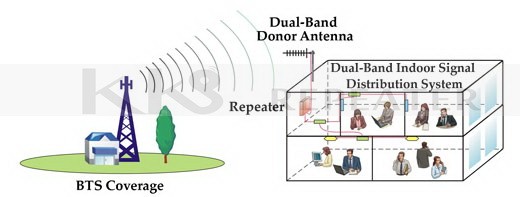

The consumer use Dual-Band GSM900&DCS1800 Mobile Signal Booster is an effective device that can enlarge the coverage area of the mobile base station and fills in the blind spots in GSM900MHz and DCS1800MHz mobile network
Product Features
l Provide quick coverage solution for small signal weak & block zones;
l Compact size, low consumption, easy installation, great cover;
l Coverage area up to 500~1000 square meters;
l High linear design, low interference to BTS;
l Full duplex and double-end design, external power supply, and convenient installation
l Provide power indication and uplink and downlink indications.
l The reliability conforms to GB6993-86 standards.
l The electromagnetic compatibility conforms to ETS300 609-4 standards.
Technical specifications
Model |
KR-2365GD |
|
Frequency range |
Uplink: GSM 890-915MHz/ Uplink 1710~1785MHz |
|
Downlink: GSM 935-960MHz / Downlink 1805~ 1880MHz 1805~1880MHz |
||
Gain (dB) |
Uplink |
≥55 |
Downlink |
≥60 |
|
Output power |
≥23dBm |
|
Pass band ripple |
≤8dB |
|
Guard band rejection |
(BW-60dB)≤42MHz (BW-70dB)≤45MHz |
|
I/O impedance |
50Ω/N Connector |
|
I/O return loss |
≤-8dB |
|
Noise figure |
≤-8dB |
|
Intermodulation attenuation(Po=13dBm) |
≤-40dBc |
|
Transmission delay |
≤0.5μs |
|
Working Temperature |
-10℃~50℃ |
|
Power supply |
AC110~220V±10%, 45~55Hz |
|
Size |
210*160*20mm |
|
Weight |
1.5kg |
|
Reliability |
To the GB6993-86 standard |
|
Electromagnetic |
To the ETS300 694-4 standard |
|
Indication |
a) Power supply LED Indicator b) Export power LED Indicator |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() | |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
