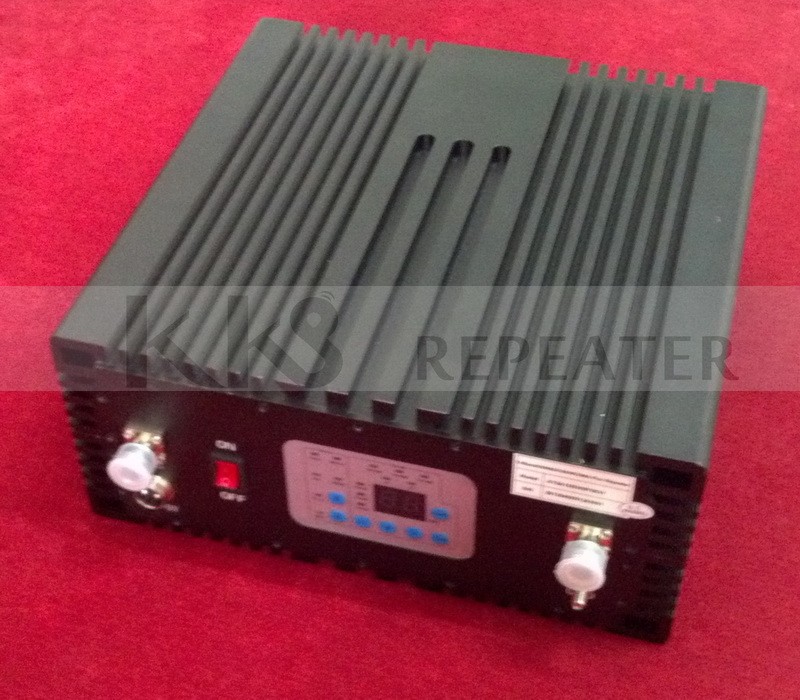

Dual-Band DCS1800 & WCDMA2100 Pico Repeater
Model: KR-1565DW
Introductions:
The Dual-Band DCS1800&WCDMA2100 Pico Band-Selective Repeater provides an affordable solution to solve the indoor signal coverage problems in both DCS& WCDMA system due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobile phones. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplify the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind mobile signal coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
The band-selective function can choose to amplify the signal within the customized band.
Features:
n Two signal ports with full duplex design
n High system gain
n Linear power amplification to effectively suppress inter-modulation and spurious emission
n Smart Automatic Level Control (ALC) ensures output level stable and adjustable continuously
n Unique color LEDs to indicate power supply and state and alarm
n Simple installation with external AC/DC adapter
Applications:
To expand signal coverage or fill signal blind area where signal is weak or unavailable.
Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots, etc.
Specifications:
System |
DCS1800 |
WCDMA 2100 |
|||
Working Frequency (customized) |
Uplink |
890~915MHz (Customized) |
|||
Downlink |
935~960MHz (Customized) |
2110~2170 MHz (Customized) |
|||
Output Power |
15dBm |
||||
Gain |
≥ 65dB |
||||
ALC&AGC |
Support |
||||
Voltage Standing Wave Ratio |
< 2.0 |
||||
Spurious Emission |
Within working band |
≤ -15dBm/30kHz |
Comply with 3GPP TS 25.106 V6.0.0 |
||
Out of working band (∆f > 2.5MHz) |
9kHz~1GHz: ≤ -36dBm/30kHz |
||||
1GHz~12.75GHz: ≤ -30dBm/30kHz |
|||||
In-band Inter-Modulation Attenuation |
≤ -40dBc / 30kHz (measured under rated output power) |
Comply with 3GPP TS 25.106 V6.0.0 |
|||
In-band Ripple |
≤ 4dB |
≤ 4dB p-p / 3.84 MHz |
|||
Noise Figure |
≤ 5dB |
≤ 5dB |
|||
-- |
|||||
P ≥ 31 dBm |
|||||
P < 31 dBm |
|||||
P <31 dBm |
|||||
System Delay |
≤ 5.0μSec |
||||
-- |
|||||
3.5 ≤ f offset < 7.5 MHz |
|||||
7.5 ≤ f offset < 12.5 MHz |
|||||
12.5 ≤ f offset |
|||||
Peak Code Domain Error (PCDE) |
-- |
||||
I/O Impedance |
50Ω |
||||
RF Connector |
N-Type (Female) |
||||
Temperature Range |
Operation:-25°C~ +55°C/ Storage:-30°C~ +60°C |
||||
Power Supply (customized) |
AC 220V, 50Hz |
||||
Backup Power Supply (optional) |
4 hours |
||||
Dimensions |
320mm *230mm*92mm |
||||
Weight |
6kg |
||||
Indication LED |
Power supply |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() | |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
