Handheld Drone Drone Detector & Locator

Model: KD-H2L

1.    Overview

KD-H2L is a handheld detector & locator that integrates functions of RF sensing, protocol decoding, remote identification (RID), and so on. The device can realize real-time detection of drones and flight path, and accurate positioning of drones and remote controllers.

With a compact design and long-lasting battery life, VBE-H2L is suitable for low-altitude security operations in various scenarios, including major events, protective security tasks, police patrols, anti-terrorism tasks, political core areas, border defense, airports, and power and petrochemical zones.

2.    Composition

This product mainly consists of a detection host, detection antenna, Type-C interface charger, and protective box, as shown in the table below:

3.    Functions

1)      Drone positioning^[1]：Locates the drones and shows the results as icons of drones on the e-map.

2)      Pilot positioning^[2]：Locates the remote controllers (pilots), and shows the results as icons of the remote controllers on the e-map.

3)      Vast drone data library^[3]：Identifies over 700 types of drones, including DJI, AUTEL, FPVs and DIY drones.

4)      Pilot navigation^[4]: H2L plans the route for tracking drone controllers with easy operation.

5)      RID detection^[5]：H2L is able to identify DJI drones (with OcuSync protocol), drones with RID, and the unique serial number (SN) of WIFI drones.

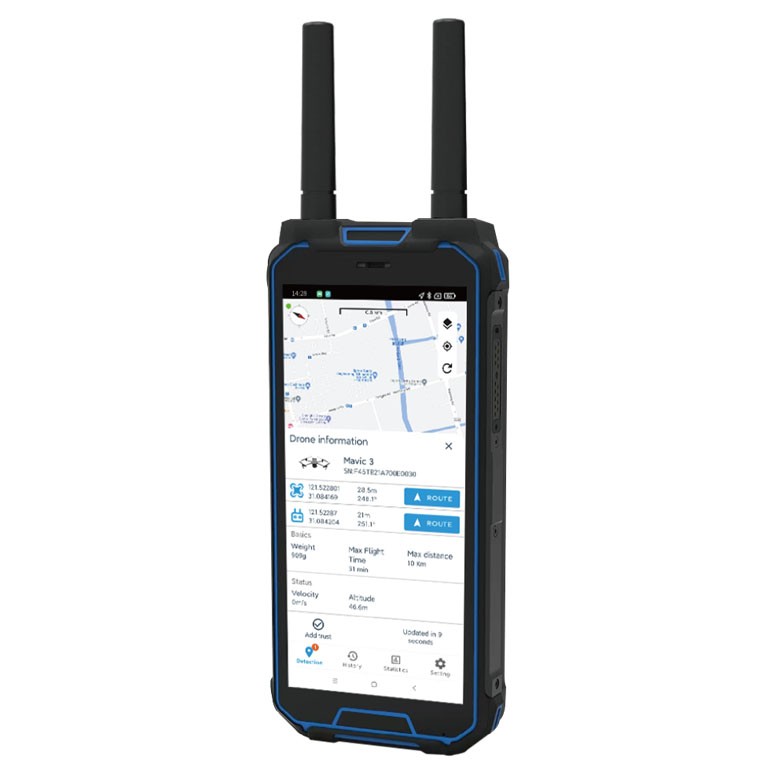

6)      Comprehensive information^[6]：Realtime display of the drone model, coordinates, velocity, altitude, pilot coordinates and so on.

7)      Black and white list^[7]：Once a white list is set, the alarm of H2L will not be set off if the drone in white list is detected.

8)      Early warning：The device will alarm by beeping or vibrating when detects the drone.

9)      Trajectory playback: Assists security personnel to analyze historical drone flight data.

10)  History records：The detection results will be saved for review, including SN, model, frequency band, etc.

11)  Multiple languages：Supports English, Chinese, Russian, and Portuguese.

Notes

[1]-[7]: Only applies to DJI series with OcuSync protocols.

[5]: GB 42590-2023, ASTM F3411 Remote ID, ASD-STAN prEN 4709-002.

4.     Features

1）  Passive detection: No electromagnetic interference.

2）  Touch screen: 6-inch screen and friendly user interface.

3）  Highly portable: Weights only 650g.

4）  Type-C interface: Suitable for standard adapter and power bank.

5.    Specifications

5.1 Performance Index

5.2 Mechanical Parameters

5.3 Electrical Characteristics

5.4 Environmental Adaptability

5.5 Touch Screen

5.6 System Storage

5.7 Operating Environment
