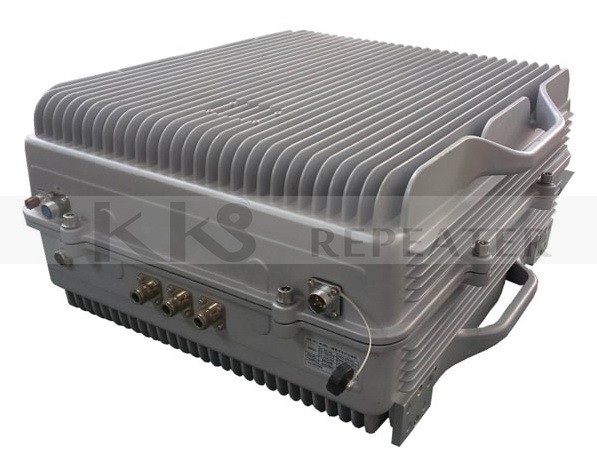

Dual Band GSM900 & DCS1800 Outdoor Mobile Repeater
Model: KR-4090GD
Introductions:
The GSM&DCS Dual-Band RF Repeater is designed to provide a more cost-effective solution than adding a new Base Transceiver Station (BTS) to improve signal coverage and communication quality in GSM900&DCS1800 system. And its easy installation and maintenance can help carrier get fast return.

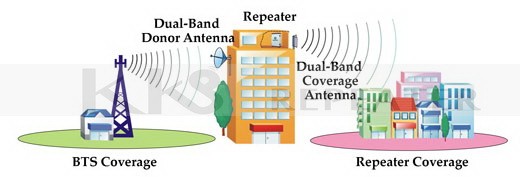

The repeater is working as a relay between the BTS and mobiles. It receives the low-power signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Coverage Antenna to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
Features:
Band-Selective RF Repeater: to amplify all signals in the whole band (bandwidth is customized);
Aluminum-alloy casing with IP65 protection has high resistance to dust, water and corroding;
Highly selective channel selector can process 12 channels simultaneously;
No interference to BTS by adopting linear amplifier with high gain and low noise;
Adopting filter with highly selectivity and low insertion loss eliminates interference between uplink and downlink;
RS-232 port provides a link to a notebook for local supervision or to the built-in wireless modem to communicate with the NMS (Network Management System) that can remotely supervise repeater’s working status and download operational parameters to the repeater.
Applications:
To expand signal coverage or fill signal blind area where GSM 900 and GSM1800 signal is weak or unavailable.
Outdoor: Airports, tourism regions, golf courses, tunnels, factories, mining districts, villages, etc;

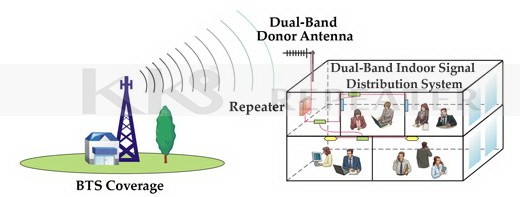

Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots, etc.
Specifications:
Items |
Specifications |
|
Frequency |
Uplink |
Downlink |
890~915&1710~1785MHz (Customized) |
935~960&1805~1880MHz (Customized) |
|
Output power |
40dBm |
|
Gain |
≥ 90dB |
|
ALC/AGC |
Supported |
|
Gain control range |
30 dB/1 dB step |
|
Ripple in band |
≤ 3.0dB |
|
Noise figure |
≤ 5.0dB |
|
VSWR |
≤ 1.5:1 |
|
Transmission delay |
≤ 5μS |
|
Out band rejection |
F(edge)±400KHz≥20dBc F(edge)±600KHz≥30dBc F(edge)±1MHz≥40dBc F(edge)±5MHz≥50dBc |
|
Spurious emission |
≤-36dBm/9KHz-1GHz ≤ -30dBm/1GHz-12.75GHz |
|
Inter-modulation |
≤ -37dBc |
|
Max. non-destructive input power |
-10dBm |
|
Impedance |
50 W |
|
Operating temperature range |
-25 ºC to +55 ºC |
|
Relative humidity |
0 ~ 95% |
|
Applications |
IP65 |
|
Monitoring and control |
RS232 (local) GSM wireless modem (remote) |
|
Dimensions |
690mm* 420mm*260mm |
|
Weight |
≤45 kg |
|
Power supply |
AC220V ±20%, 50Hz ±10% |
|
Power consumption rating |
≤300W |
|
RF Connectors type |
N female |
|
Mounting |
Wall or pole |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() | |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
