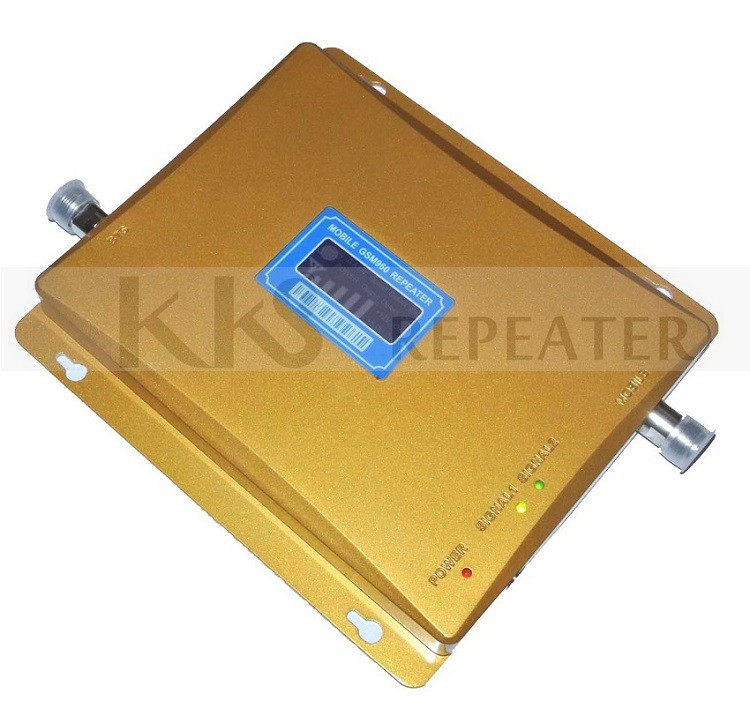

Single-Band GSM Mobile Signal Booster
Model: KR-2365C/GD/P

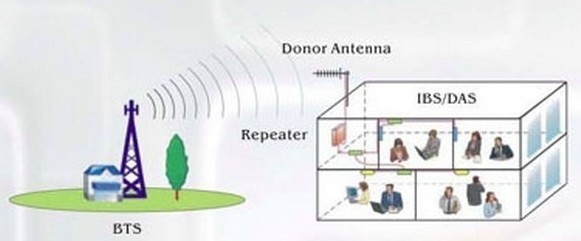

The consumer use Single-Band GSM Mobile Signal Booster is an effective device that can enlarge the coverage area of the mobile base station and fills in the blind spots in GSM mobile network
Product Feature
lProvide quick coverage solution for small signal weak & block zones;
lCompact size, low consumption, easy installation, great cover;
lCoverage area up to 500~1000 square meters;
lHigh linear design, low interference to BTS;
lManual Gain control available
lFull duplex and double-end design, external power supply, and convenient installation
lProvide power indication and uplink and downlink indications.
lThe reliability conforms to GB6993-86 standards.
lThe electromagnetic compatibility conforms to ETS300 609-4 standards.
Technical specifications
Items
Specifications
Frequency range
GSM850/900/1800/1900 (customized)
GSM850/900/1800/1900 (customized)
Gain
(dB)
Uplink
≥60
Downlink
≥65
Output power
≥23dBm
Pass band ripple
≤8dB
Guard band rejection
（BW-60dB）≤42MHz
（BW-70dB）≤45MHz
I/O impedance
50Ω/N Connector
I/O return loss
≤-8dB
Noise figure
≤-8dB
Intermodulation attenuation(Po=13dBm)
≤-40dBc
Transmission delay
≤0.5μs
Working Temperature
-10℃～50℃
Power supply
AC110～220V±10%, 45～55Hz
Size
210*160*20mm
Weight
1.5kg
Reliability
To the GB6993-86 standard
Electromagnetic
To the ETS300 694-4 standard
Indication
a) Power supply LED Indicator
b) Export power LED Indicator
