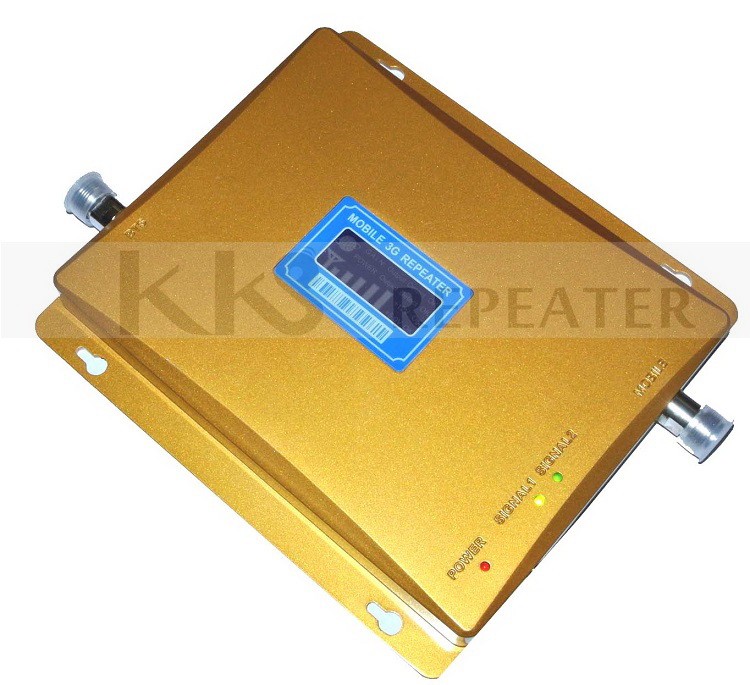

Single-Band 3G WCDMA Mobile Signal Booster
Model: KR-1765W /KR-2365W
The consumer use Single-Band 3G WCDMA2100 Mobile Signal Booster is an effective device that can enlarge the coverage area of the mobile base station and fills in the blind spots in3G WCDMA 2100MHz mobile network
Product Feature
lProvide quick coverage solution for small signal weak & block zones;
lCompact size, low consumption, easy installation, great cover;
lCoverage area up to 500~1000 square meters;
lHigh linear design, low interference to BTS;
lManual Gain control available
lFull duplex and double-end design, external power supply, and convenient installation
lProvide power indication and uplink and downlink indications.
lThe reliability conforms to GB6993-86 standards.
lThe electromagnetic compatibility conforms to ETS300 609-4 standards.
Technical specifications
Items |
Specifications |
|
Frequency range |
Uplink: WCDMA 3G1920-1980MHz |
|
Downlink: WCDMA3G2110-2170MHz |
||
Gain (dB) |
Uplink |
≥60 |
Downlink |
≥65 |
|
Output power |
≥23dBm |
|
Pass band ripple |
≤8dB |
|
Guard band rejection |
(BW-60dB)≤42MHz (BW-70dB)≤45MHz |
|
I/O impedance |
50Ω/N Connector |
|
I/O return loss |
≤-8dB |
|
Noise figure |
≤-8dB |
|
Intermodulation attenuation(Po=13dBm) |
≤-40dBc |
|
Transmission delay |
≤0.5μs |
|
Working Temperature |
-10℃~50℃ |
|
Power supply |
AC110~220V±10%, 45~55Hz |
|
Size |
210*160*20mm |
|
Weight |
1.5kg |
|
Reliability |
To the GB6993-86 standard |
|
Electromagnetic |
To the ETS300 694-4 standard |
|
Indication |
a) Power supply LED Indicator b) Export power LED Indicator |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() | |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
