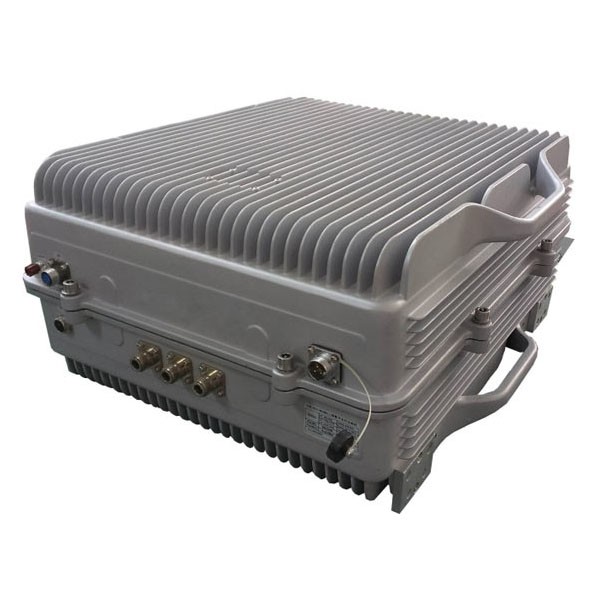

GSM Outdoor Signal Repeater
Model: KR-3090G/ KR-3390G/ KR-3790G/ KR-4090G/ KR-4390G
Introductions:
The GSM RF Repeater is designed to provide a more cost-effective solution than adding a new Base Transceiver Station (BTS) to improve signal coverage and communication quality in GSM system. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It receives the low-power signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Coverage Antenna to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
Features:
Aluminum-alloy casing with IP65 protection has high resistance to dust, water and corroding
No interference to BTS by adopting linear amplifier with high gain and low noise
Adopting filter with highly selectivity and low insertion loss eliminates interference between uplink and downlink
USB port provides a link to a notebook for local supervision or to the built-in wireless modem to communicate with the NMS (Network Management System) that can remotely supervise repeater’s working status and download operational parameters to the repeater
Applications
To expand signal coverage or fill signal blind area where GSM signal is weak or unavailable.
Outdoor: Airports, tourism regions, golf courses, tunnels, factories, mining districts, villages, etc.
Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots, etc.
Technical Specifications:
|
Items |
Specifications |
||
|
Working Frequency |
Uplink |
GSM850/900/1800/1900(customized) |
|
|
Downlink |
GSM850/900/1800/1900(customized) |
||
|
Working Bandwidth |
Customized |
||
|
Maximum Input Power (Non-Destructive) |
10dBm |
||
|
Output Power |
30/33/37/40/43dBm |
||
|
Gain |
≥90dB |
||
|
Gain AdjustmentRange |
1~31 dB @ step of 1 dB |
||
|
Voltage Standing Wave Ratio |
< 1.5 |
||
|
Noise Figure |
≤ 5dB |
||
|
In-band Ripple |
≤3dB |
||
|
Spurious Emission |
Within working band |
≤ -15dBm/30kHz |
|
|
Out of working band (∆f > 2.5MHz) |
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
|||
|
Third-order Inter-modulation |
≤ -40dBc / 30kHz (measured under rated output power) |
||
|
System Delay |
≤5μSec |
||
|
I/O Impedance |
50Ω |
||
|
RF Connector |
N-Type (Female) / Changeable / bottom of casing |
||
|
Temperature Range |
Operation:-25°C~ +55°C/ Storage:-30°C~ +60°C |
||
|
Relative HumidityRange |
≤ 95% (non condensing) |
||
|
Power Supply (customized) |
DC +24V / AC 220V±15% or AC 110V±15%, 50Hz |
||
|
Power consumption |
≤200W |
||
|
Backup Power Supply (optional) |
4 hours |
||
|
Casing Level |
IP65 |
||
|
Dimensions |
385*300*130mm/ 428*328*220mm/630*400*230mm |
||
|
Weight |
25kgs/30kgs/35kgs |
||
|
Control Connector |
USB port for local / remote |
||
|
NMS Monitoring Function(Optional) |
Real-time alarm for door status, temperature, power supply, LNA, VSWR, self-oscillation, etc; Remote control such as turn on/off, increasing/decreasing output power etc; Real-time status for output/input power, UL/DL gain, all status of repeater etc. |
||
