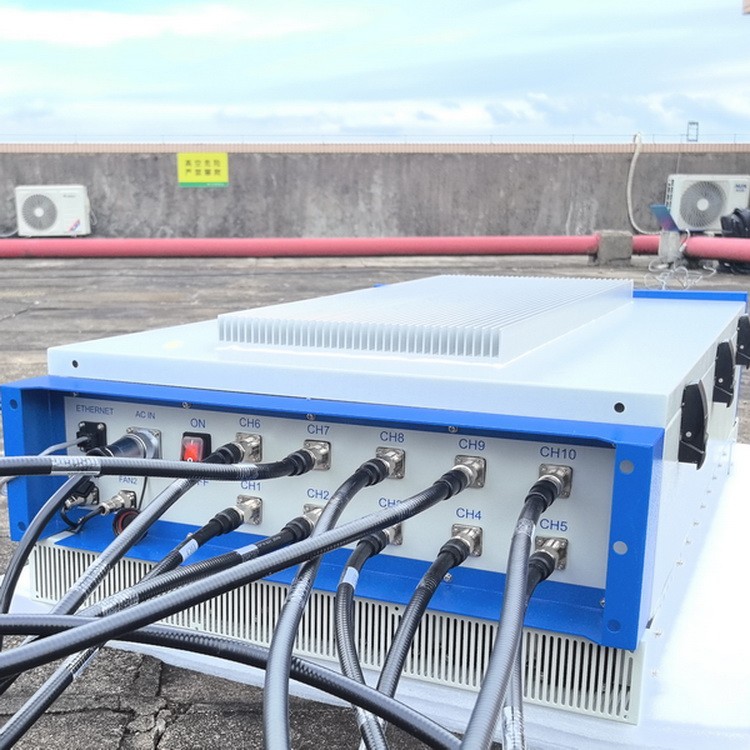

High Power 10CH Bands Stationary Anti Drone Jamming System

Model: KJ-1000D10

Introductions:

 The KJ-1000D10 is a high Power commercial drone Jamming system, uses state-of-art technology for maximum performance and reliability

Features:

Frequency bands and output power selectable

Each frequency band be controlled independently by different power adjusting snobs

Easy operation and installation

Remote Monitoring software available to control the Jammer (optional)

Applications:

Any sensitive locations where the UAV / quadcopter / drones are not allowed, such as prisons, military bases.

Technical Specifications:

Jamming frequency bands: 10 frequency bands selectable of  the frequency bands used by commerical quadcopter drones.

RF output power: up to 1000W

Internal Modulation: FM Hopping Frequency and Sweeping

Signal Source: PLL Synthesized & VCO / DDS

Effective jamming range: up to 1000 meters depending on the  environment signal strength;

Jamming target: 315/433/868/915MHz, GPS L1/L2, BDS, GNSS, 1.2G, 1.4G, 2.4G, 2.8G, 5.2G, 5.8G selectable

Remote Control: Remote Monitoring available by IP Network (optional)

Remote Control Interface: RJ45 (optional)

Power supply: 110-220VAC/27-48VDC

Continuous working hours: Long time

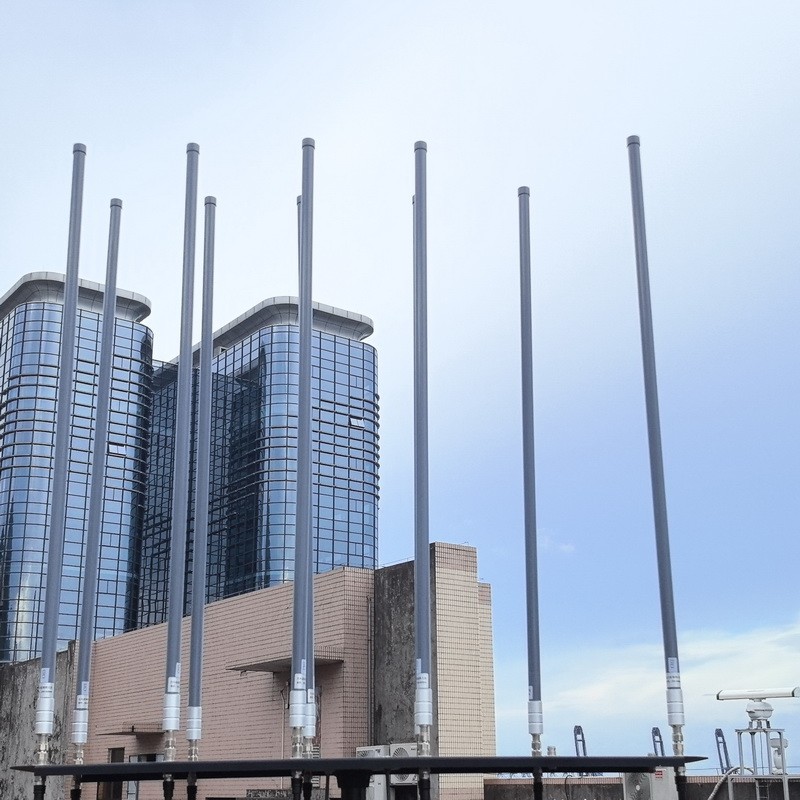

Antennas type: 10pcs High Gain Omni Antennas

Device Dimension: 500*410*300mm

Device Net Weight: approx 55kgs

Operating Temperature: -20ºC - +55ºC

Humidity: up to 95%
