Anti Drone Shield, Portable Anti-Drone Jammer, Drone Jammer

Model: KJ-30M3D

Introductions:

The Jammer is a  Anti Drone Shield, Portable Drone Jammer / RF Gun to shoot down the commercial drones, uses state-of-art technology for maximum performance and reliability

Features:

Frequency bands and output power selectable;

Integrated main equipment, battery, and antennas which increase mobility of the device;

Different frequency bands can be controlled independently by different switches;

AC or DC power supply can be selected;

Power Amplifiers protection design ensures the working reliability of the device;

Built-in battery can support the Jammer to work 2 hours.

Applications:

To block commercial used drones for any sensitive locations

Technical Specifications:

Total RF output power: 30W

Internal Modulation: FM Hopping Frequency and Sweeping

Signal Source: PLL Synthesized

Sweep rate: Fixed

Effective jamming range: up to 2km depending on the target signal strength;

Jamming target: commercial used drones/UAVs

Power supply: 220VAC/110VAC, 24VDC

Power Consumption: 150w

Continuous working hours: 1-2 hours by Battery

Battery capacity: 24V15A

Antennas type: high gain directional antennas

Dimension: 277*180*51mm

Net Weight: 1.9kgs;

Operating Temp: -20ºC - +50ºC

Humidity: 5% - 95%

System Included:

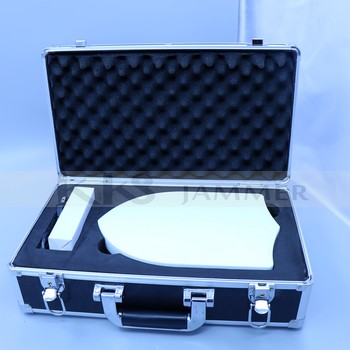

A.     1pcs Anti Drone Shield;

B.     1pcs power supply adaptor;
