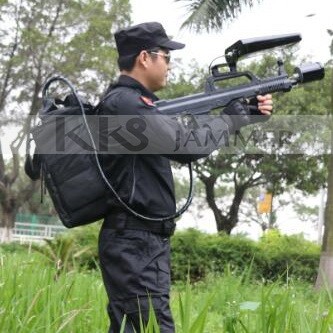

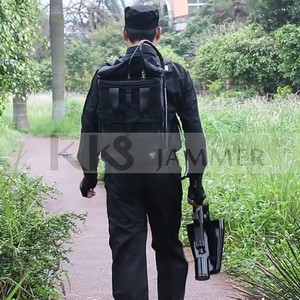

Manpack Drone Jammer

Model: KJ-60M4D

Features and Advantages:

Frequency bands and output power selectable;

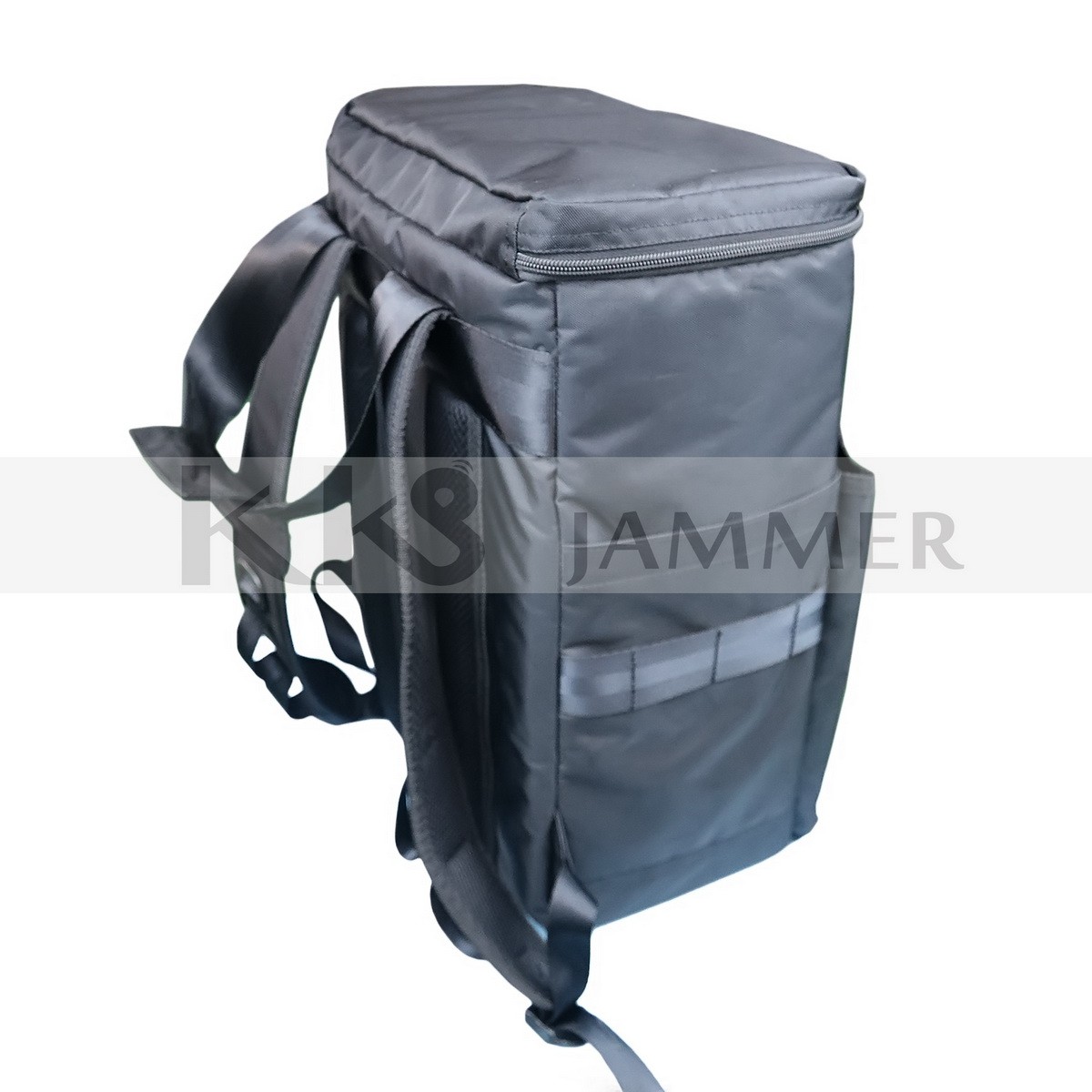

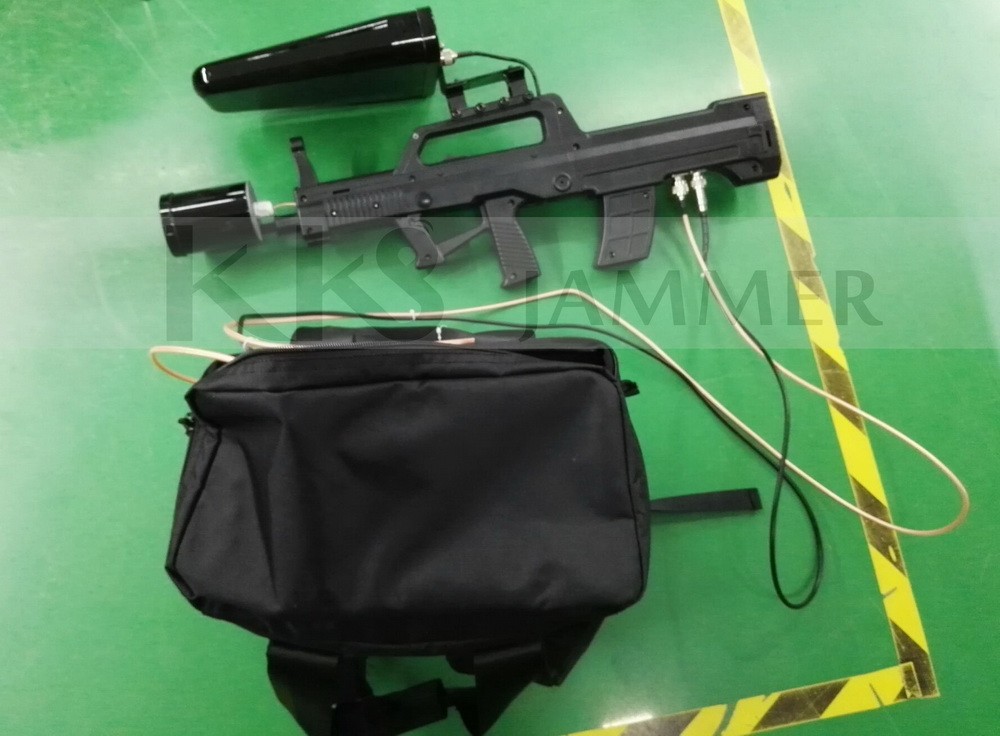

Integrated main equipment, battery, and antennas which increases mobility of the device;

Different frequency bands can be controlled independently by different switches;

AC or DC power supply can be selected;

Power Amplifiers protection design ensures the working reliability of the device;

Applications:

Any sensitive locations where the Quadcopter drones are not allowed to fly, such as prisons, police stations, etc.

Technical Specifications:

RF Characteristics:

Working Frequency Bands: 4 working bands selectable of  all frequency bands used by commercial drones such as 900MHz, 1.2G, GPS L1, GPS L2,2.4G,5.8G, etc.

RF Output Ports: up to 4 RF Output Ports selectable;

RF output power: up to 60W;

Channel Output Power: up to 15W

Internal Modulation: Direct Digital Synthesis (DDS) or Analog;

Effective jamming ranges: 50-1000m depending on the environment signal strength;

Jamming target:   900MHz, GPS L1/L2, 1.2G, 2.4G,5.8G, etc;

Power supply: 220VAC,12/24/28VDC battery selectable (optional);

Continuous working hours: Long time (by AC 220V); 1 hour by battery, rechargeable;

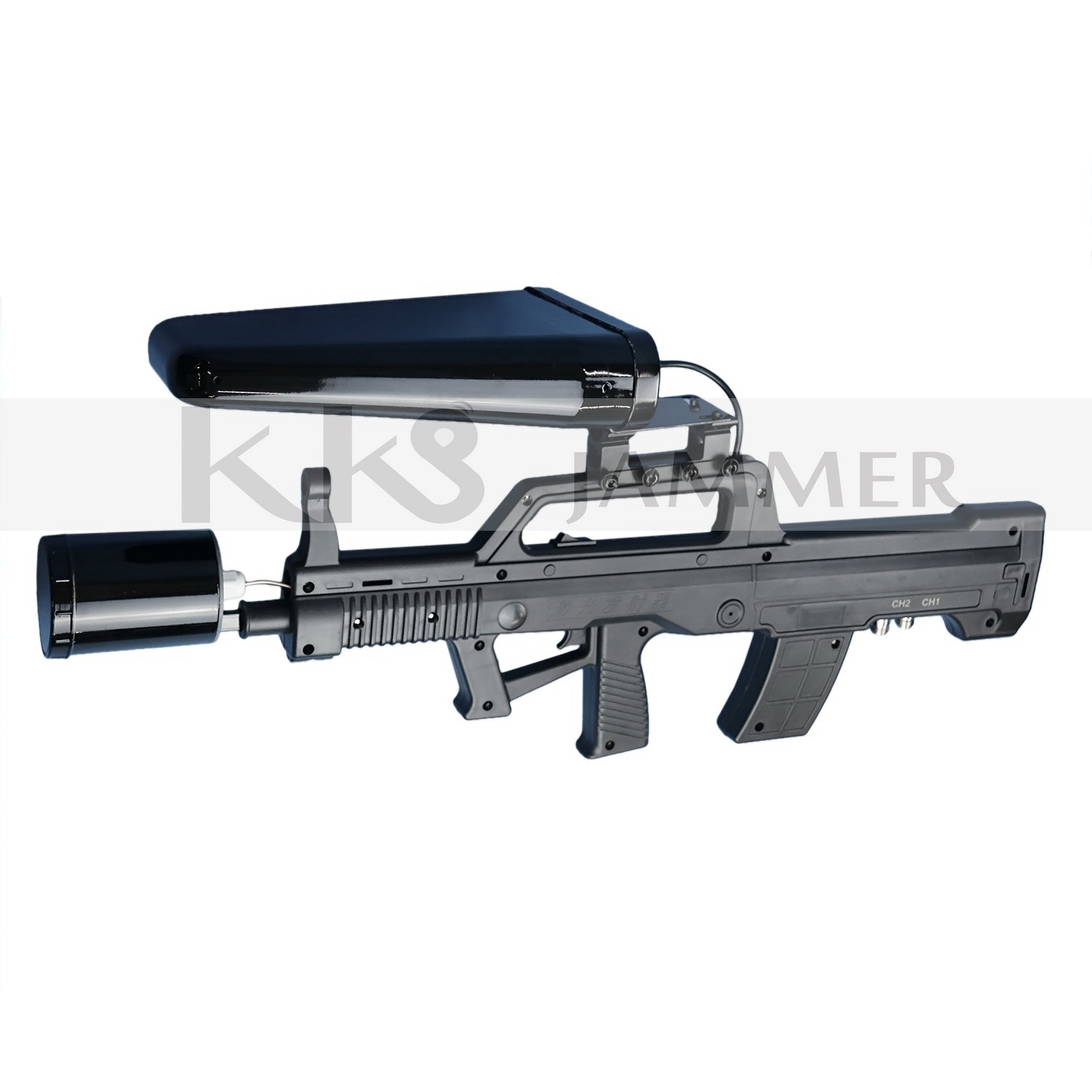

Antennas type: high gain Directional Antennas

Physical data:

Main equipment Dimension: 450*200*320mm;

Main equipment Weight: approx 20kgs;

Environment of operation:

Operating Temp: -20ºC - +50ºC;

Humidity: 5% - 95%.
