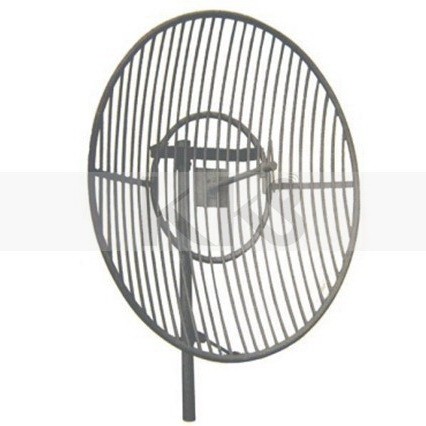

High Gain Grid Parabolic Antenna 869-960MHz
Model: KA-21D89
Electrical Specifications
Frequency Range: 869~ 960MHz
Polarization: Vertical
VSWR: < 1.4
Gain: 21.5 dBi
Horizontal 3dB Beamwidth: 13°
Vertical 3dB Beamwidth: 12°
Front-Back Ratio: >30dB
Impedance: 50Ω
Maximum Input Power: 100W
Connector N(F)
Lightning Protection: Direct Ground
Mechanical Specifications
Dimensions: Φ1800mm
Weight of Antenna:19kg
Diameter of Installation Pole: Φ50 mm~Φ110mm
Horizontal: 360°
Angle of Pitch: ± 15°
Wind Velocity: 241km/h
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() | |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
