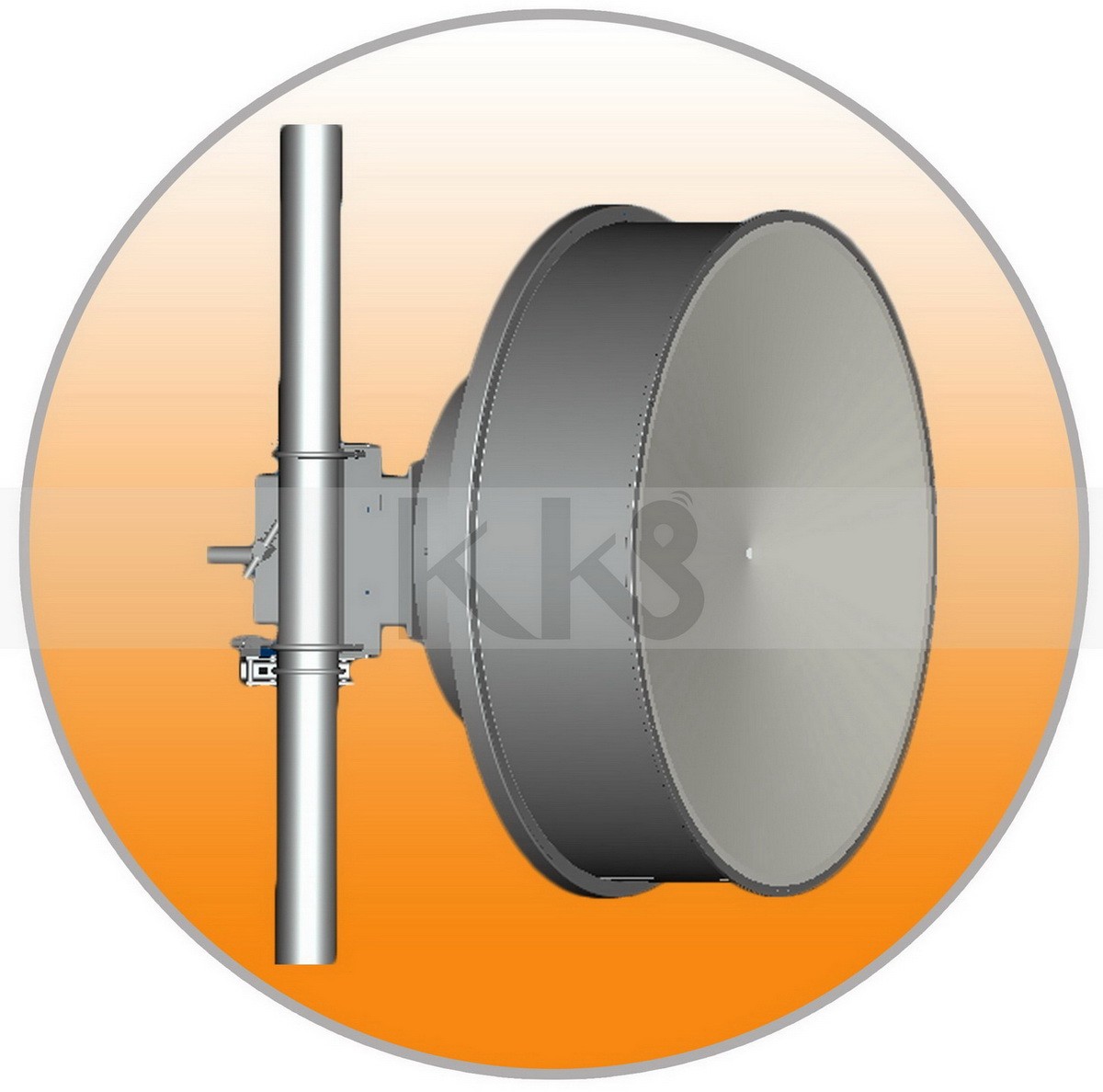

High Gain Directional Link Antenna 4.4-5GHz
Model: KA-32D45
Electrical Specifications
Frequency,(GHz) |
4.4~5.0 |
|
Polarization |
Dual |
|
Regulatory Compliance |
ETSI EN 302 217-4-2V 1.3.1Range1,Class2 |
|
|
Low (dBi) |
32 |
Gain |
Mid (dBi) |
32.5 |
|
Top (dBi) |
33 |
3dB,beamwidth,(deg.) |
4 |
|
XPD,(dB) |
28 |
|
IPI,(dB) |
35 |
|
F/B Ratio,(dB) |
52 |
|
VSWR |
1.3 |
Mechanical Specifications
Diameter,(m) |
1.2 |
Antenna Color |
Cool Gray |
Waveguide-type |
PDR48 (IEC-154) |
Radome Options |
White |
Azimuth Adjustment |
Coarse : 360 ° Fine : ±10 ° |
Elevation Adjustment |
Fine : ±10 ° |
Diameter of mounting pipe,(mm) |
Φ114 |
Ice-load,(mm) |
25 |
Operational Temperature,(℃) |
-45~+60 |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() | |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
