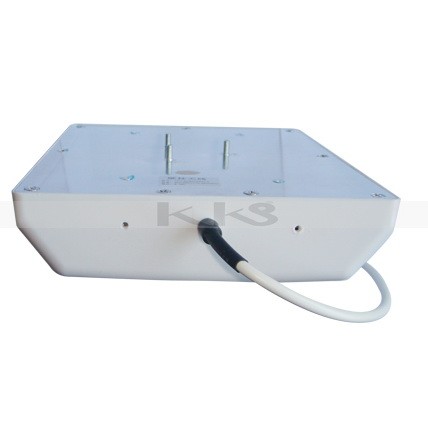

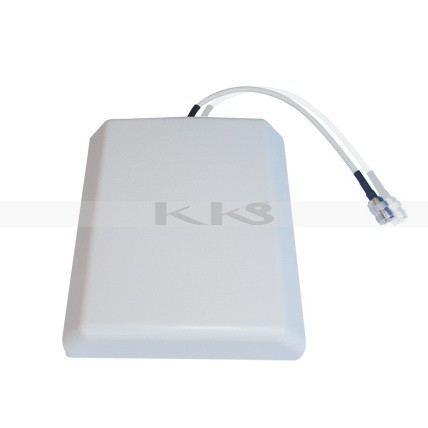

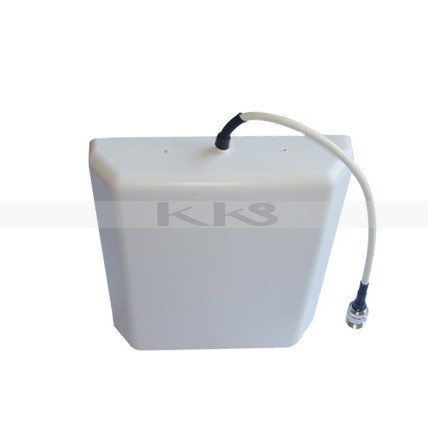

9dBi Outdoor Directional Panel Antenna
Model: KA-9D
Electrical Specifications
Frequency Range: 824 ~ 960&1710-2700MHz
VSWR: < 1.4
Gain: 9dBi
Horizontal 3dB Beamwidth: 90°
Vertical 3dB Beamwidth: 50°
Impedance: 50Ω
Maximum Input Power: 100 W
Connector: N-F or customized
IM.3rdOrder(2×43dBm): <-150dBc
Lightning Protection: Direct Ground
Mechanical Specifications
Dimensions: 210×180×45mm
Weight of Antenna:0.8kg
Radome Material: ABS
