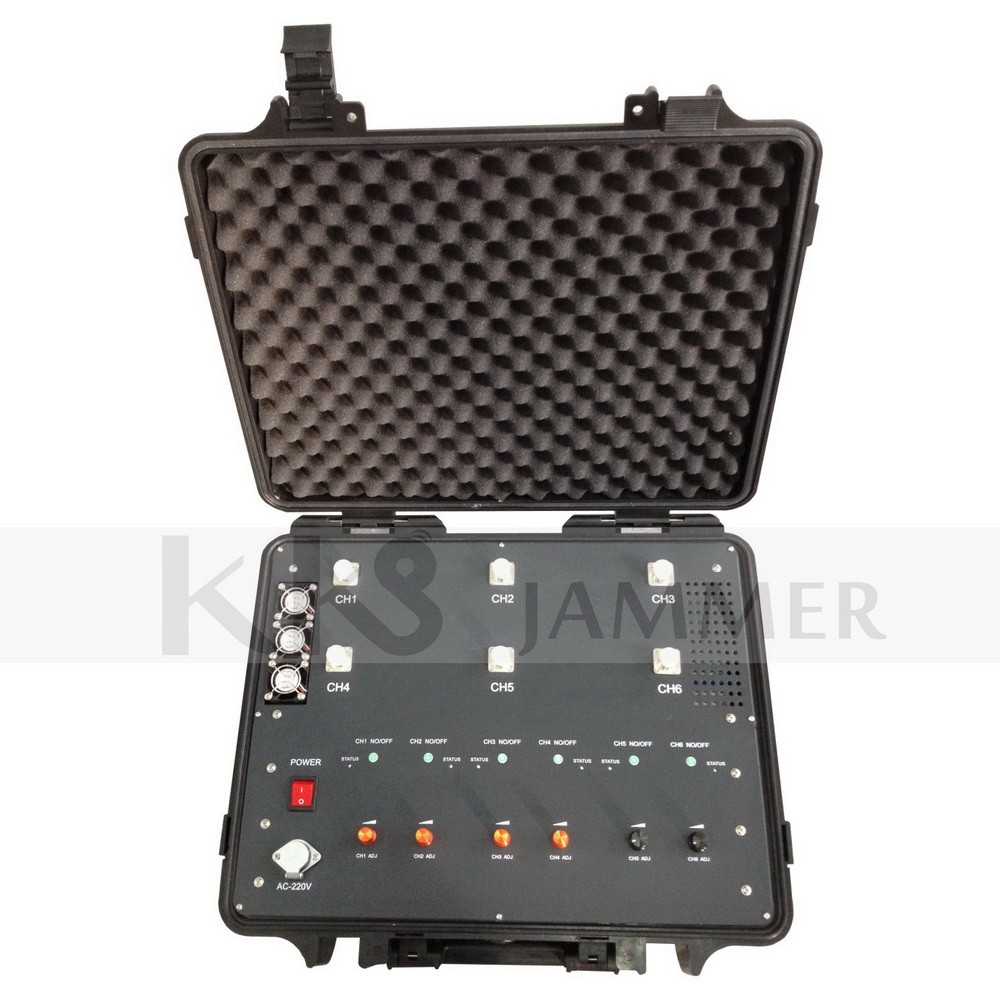

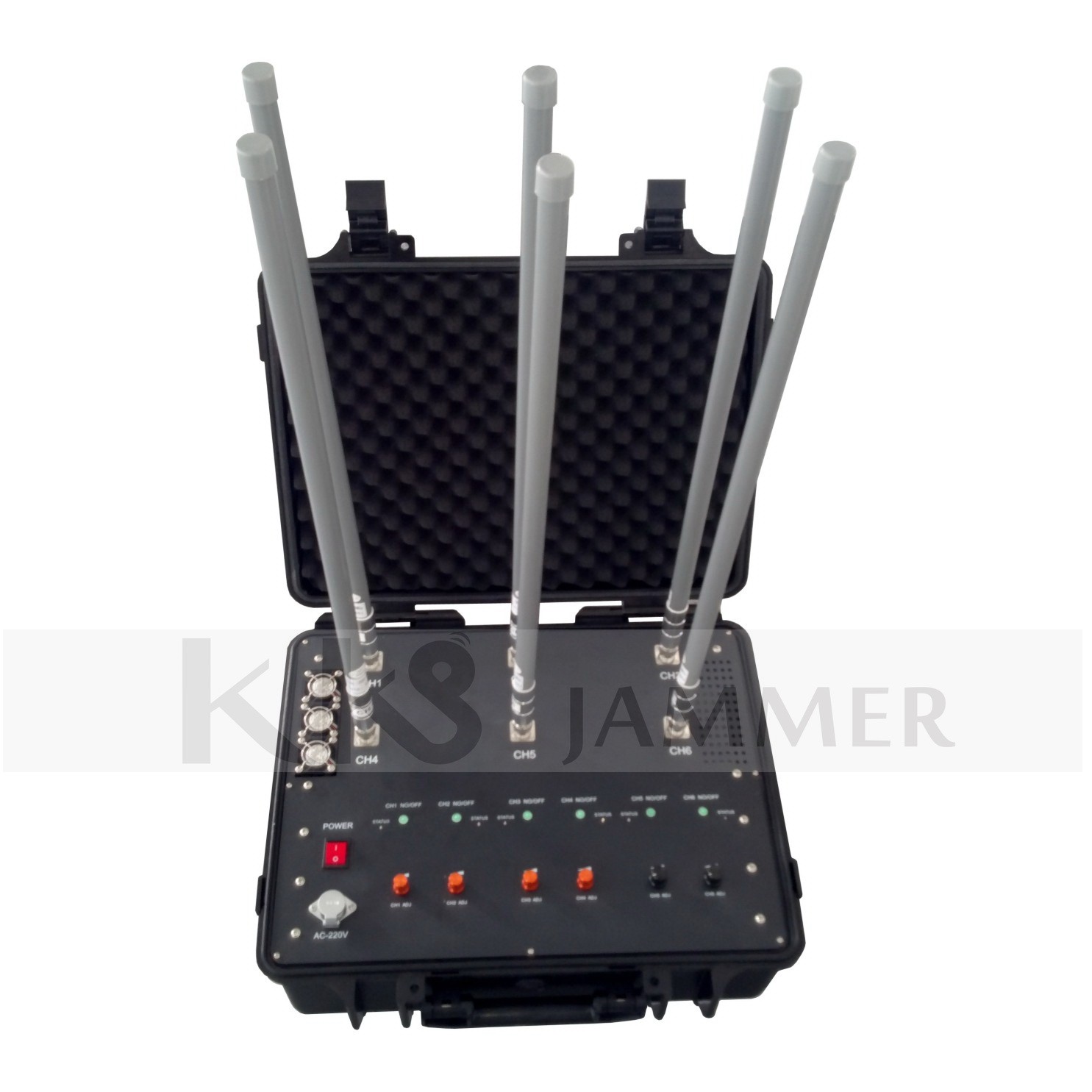

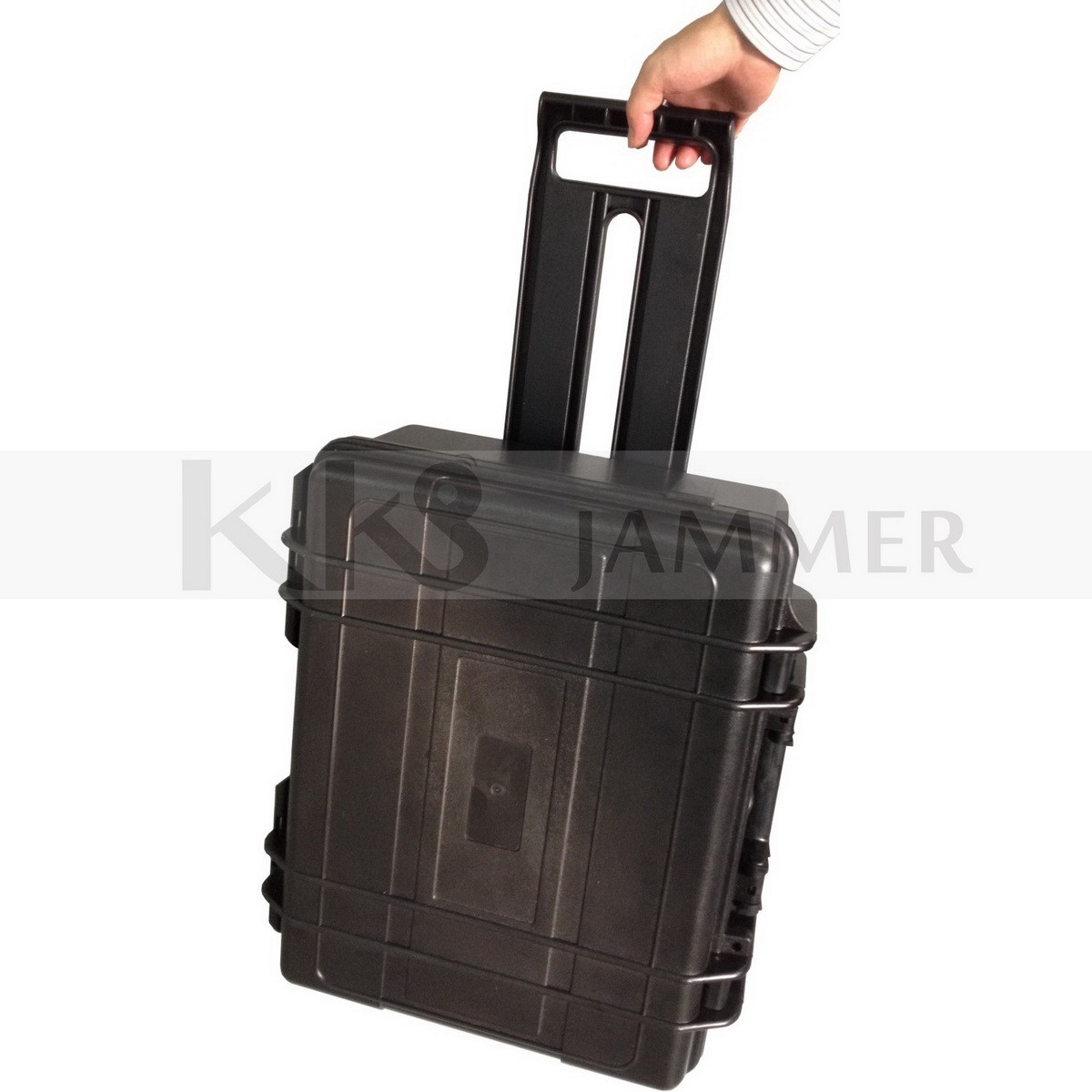

300W High Power Portable Bomb Jammer

Model: KJ-300M6D

Introductions:

The KJ-300M6D is High Power Portable Quadcopter Drone Jammer;

The KJ-300M6D uses state-of-art technology for maximum performance and reliability;

The KJ-300M6D has robust mechanical design, ready for use;

Features and Advantages:

Frequency bands and output power selectable;

Integrated main equipment, battery, and antennas which increases mobility of the device;

Different frequency bands can be controlled independently by different switches;

Local or wire control operation mode can be selected based on actual environment;

AC or DC power supply can be selected;

Power Amplifiers protection design ensures the working reliability of the devi

Applications:

Any sensitive locations where the Quadcopter drones are not allowed to fly, such as prisons, police stations, etc.

Technical Specifications:

RF Characteristics:

Working frequency range:  8 working bands selectable of  all frequency bands used by commercial drones such as 315, 433, 868, 915MHz, 1.2G, GPS L1, GPS L2, 2.4G, 5.8G, etc.

RF Output Ports: up to 6 RF Output Ports selectable;

Total RF output power: up to 300W;

Channel RF Output Power: up to 50W;

Internal Modulation: Direct Digital Synthesis (DDS) or Analog;

Effective jamming ranges: 50-500mdepending on the environment signal strength;

Jamming target:  315/433/868/915MHz, GPS L1/L2, 1.2G, 2.4G, 5.8G, etc;

Remote Control: Wire Control Panel Available (optional);

Power supply: 220VAC, 12/24/28VDC battery selectable (optional);

Continuous working hours: Long time (by AC 220V); 2hours by battery, rechargeable;

Antennas type: high gain Omni Antennas;

Physical data:

Main equipment Dimension: 630*530*330mm;

Main equipment Weight: 30kgs;

Environment of operation:

Operating Temp: -20ºC - +50ºC;

Humidity: 5% - 95%.
