Introductions:

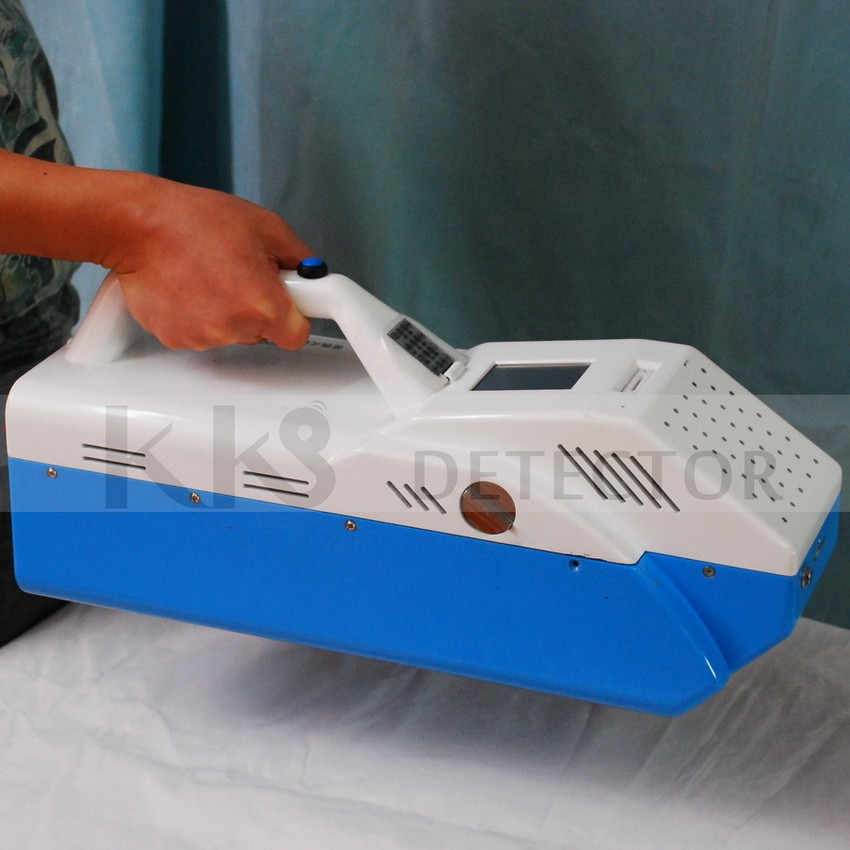

As advanced explosives detector based on lon Mobility Spectrometry (IMS) technology, KD-180 can be used to detect and identify trace explosives quickly and accurately. It has been widely applied for airports, customs, frontier defence, police, national defence, smuggling suppression, fire protection and army department etc.
KD-180 has higher sensitivity and reliability, which enables it to detect and identify many kinds of explosives in less than 6 seconds. With many patents applied, true portability has also been achieved for KD-180 explosives detector so that it can be conveniently used in various field applications. Different interfaces are available to facilitate data export and backup. New explosives sample standards can be updated by users. Meanwhile, KD-180 is convenient to use and maintain with low-cost consumables.
Features:
* High sensitivity and detecting to pg level explosives
* Unique black powder nanogram level detection, including fireworks, civil homemade explosives
* One key detection, easy operation
* Automatic Self cleaning system and deep cleaning function
*Auti-pollution sampling design
*Renewable gas purification system
*Automatic Self Calibratio
*VUV lamp soft ionization technique, non-radioactive
* Faster response and analysis time, less than 6 seconds
*Advanced migration tube design ensures high resolution;
* Portable, weight 4.75kg (with battery)
* 3.5” color TFT display
*Open Database, users can add new type of explosives
*Alarm thresholds can be modified by users
* Dipstick can be reused
*Advanced Data Transmission and control function
*Unlimited storage, USB port to export data
Applications:
Airport, Police, Firefighting, Post Offices, Courts, Railway Stations, Subways, Customs, Frontiers, Underground garages, etc.
Technical Specifications:
Technology |
Ion Mobility Spectrometry |
Sample Type |
Particulates, vapors and aerosol |
Explosives Detected |
TNT, DNT, NG, PETNl, Black Powder, RDX, HMX, Tetryl, Ammonium nitrate, C4, etc. |
Sensitivity |
Ng to Pg level |
Sensitivity limit |
1Ng TNT |
Analysis Time |
2 to 6 seconds |
Sampling method |
Dipstick wiping and trace particle adsorption |
Warm-up Time |
≤20 minutes |
False Alarm Rate |
≤1% |
Power |
110/220VDC, 50/60HZ |
Battery |
22.4VDC, lithium ion battery, work more than 4h |
Alarm |
Sound, visual alarm and hidden alarm |
Data Display |
3.5” color TFT display |
Calibration |
automatic self calibration |
Dimensions |
470*165*180mm |
Weight |
5kg (with battery) |
Battery working time |
More than 4 hours |
Working Temperature |
-10 to 60 celsius degrees |
Relative Humidity |
≤93% |
lnterface |
USB, RS232, WIFI, BLUETOOTH |
Data Memory |
No less than 100000 records |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() | |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
