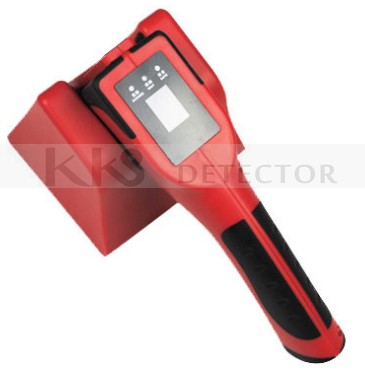

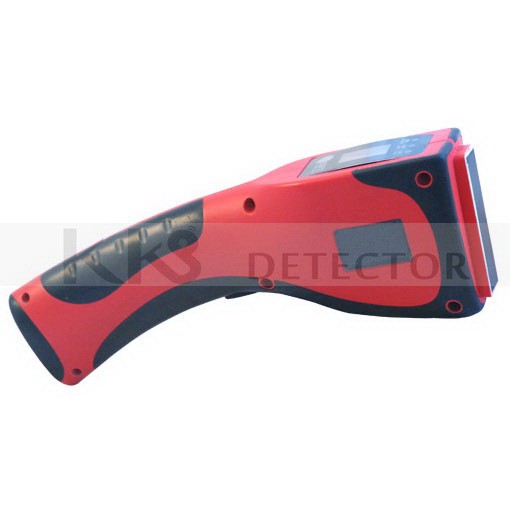

Handheld Liquid Explosive Detector

Model: KD-550

Features:

Identify chemical composition of liquids, which is sealed in bottle or can.

Small size, high speed analysis, easy to operate

Control access security of airport, train station, subway, gymnasium, important government office, boarder, and seaport and so on.

No radiation, harmless to people and test sample - Ultra-wideband pulse microwave reflection method & the thermal conductivity technology

Technical Specifications:

1. Component: The host and charging base

2. Limited material of bottle / plastic,

3. Limitation of bottle: Bottle size no less than: 5.5cm*1.5cm, capacity no less than 50ml.

4. Identify dangerous liquid

5. More than 40 sorts: Gasoline, kerosene, diesel oil, hydrochloric acid, sulfuric acid, nitric acid, sodium hydroxide, potassium hydroxide, isopropyl ether, petroleum ether, propionaldehyde, benzene, carbon disulfide, hexane, isopropanol, nitromethane, diethylamine, tris the trihalomethanes, ethylene glycol, xylene and other flammable, corrosive liquids

6. Data storgage: No less than 1000 times test results are saved automatically, USB port available to load down the datas.

7. Alarm for dangerous liquid: Audio and visual alarm

8. Power on time: 1 seconds

9. Identify time: Container: Within 1 second

10. Out size: 216*50*79mm(L*W*H)

11. Weight: <200g(with battery)

12. Temperature of container: 5-35° C

13. Storage temperature : -40° C to 60° C / 5% to 95% humidity

14. Working temperature: -10° C to 55° C / 5% to 95% humidity

15. Power consumption: 10W
