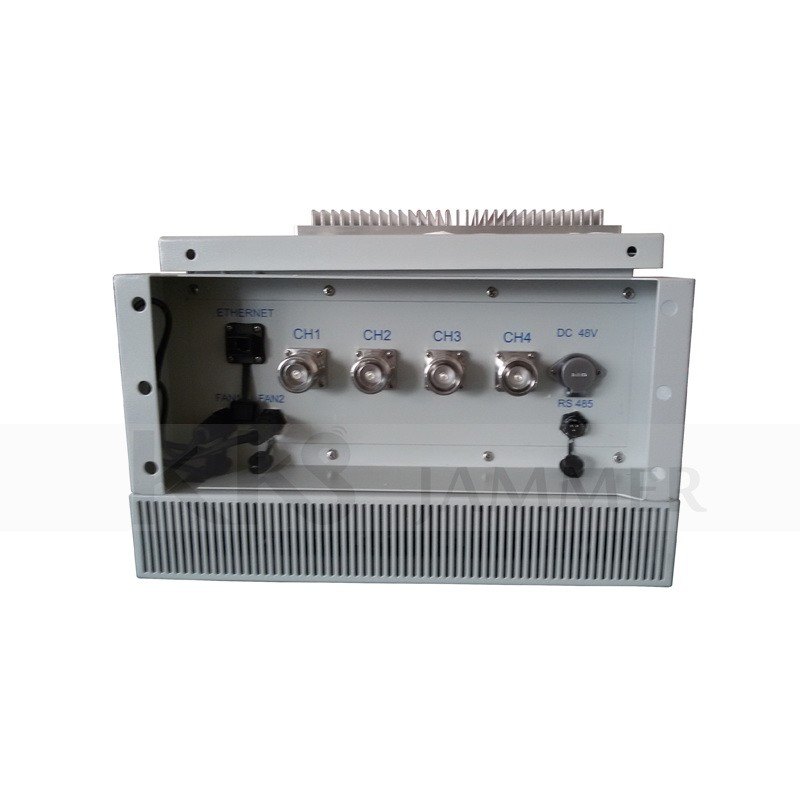

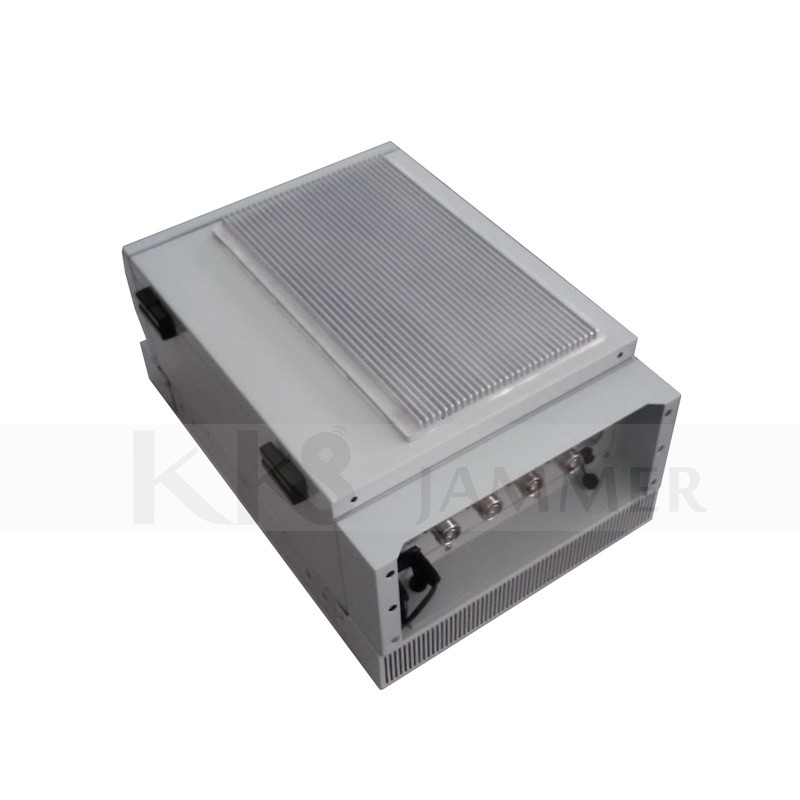

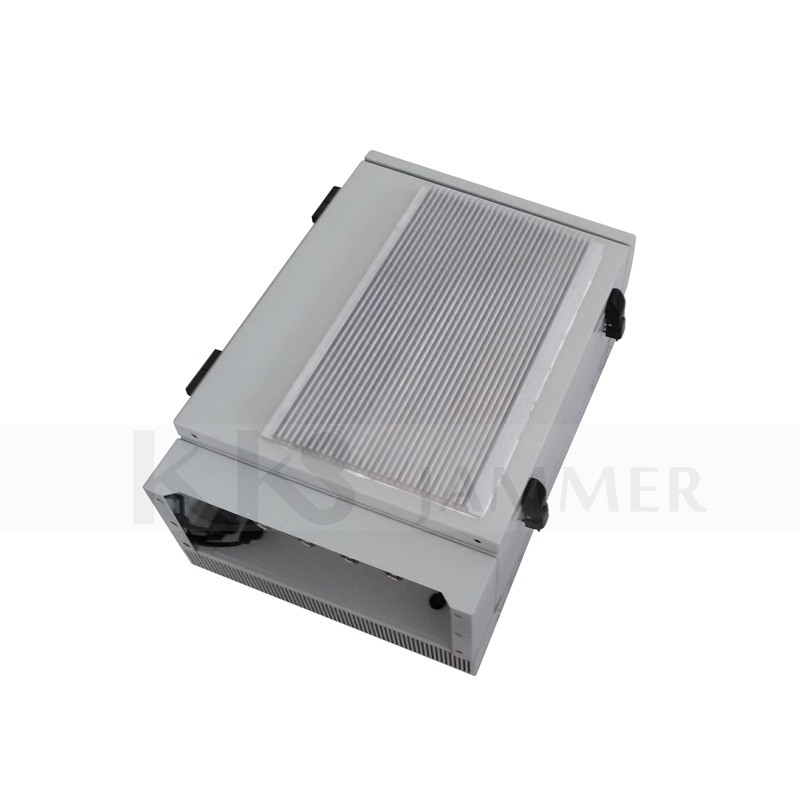

igh Power Adjustable Stationary Anti Drone Jamming System

Model: KJ-400D4

Introductions:

 The KJ-400D4 is high Power commercial drone Jammer, uses state-of-art technology for maximum performance and reliability

Features:

Frequency bands and output power selectable

Each frequency band be controlled independently by different power adjusting snobs

Easy operation and installation

Remote Monitoring software available to control the Jammer (optional)

Applications:

Any sensitive locations where the UAV / quadcopter / drones are not allowed, such as prisons, military bases.

Technical Specifications:

Jamming frequency bands: 4 frequency bands selectable of  the frequency bands used by commerical quadcopter drones.

RF output power: up to 400W

Internal Modulation: FM Hopping Frequency and Sweeping

Signal Source: PLL Synthesized & VCO / DDS

Effective jamming range: up to 1000 meters depending on the  environment signal strength;

Jamming target: 315/433/868/915MHz, GPS L1/L2, 1.2G, 2.4G, 5.8G selectable

Remote Control: Remote Monitoring available by IP Network (optional)

Remote Control Interface: RJ45 (optional)

Power supply: 110-220VAC/27-48VDC

Continuous working hours: Long time

Antennas type: 1pcs high gain Directional antenna or 4pcs Omni Antennas

Device Dimension: 592*395*265mm

Device Net Weight: 25kgs

Operating Temperature: -20ºC - +50ºC

Humidity: 5% - 95%
