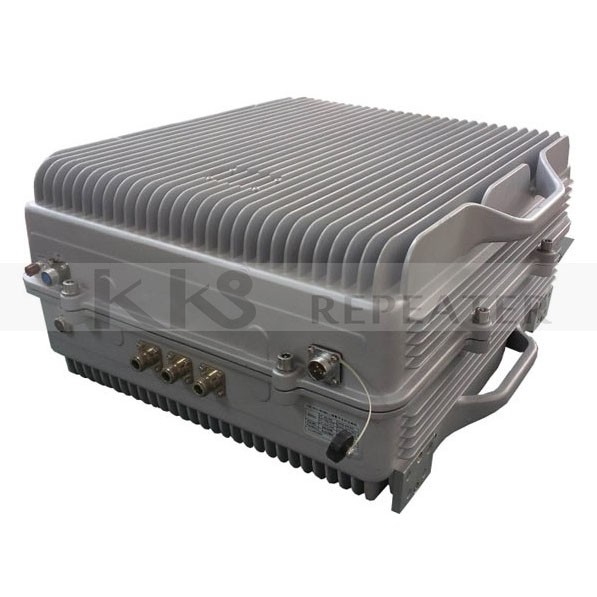

GSM & DCS & WCDMA Tri-Band Outdoor Repeater
Model: KR-4090GDW
Introductions:
The GSM&DCS&WCDMA Tri-Band RF Repeater (RFR) is designed to provide a more cost-effective solution than adding a new Base Transceiver Station (BTS) to improve signal coverage and communication quality in GSM900&DCS1800&WCDMA system. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It receives the low-power signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Coverage Antenna to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
Features:
n Band-Selective RF Repeater: to amplify all signals in the whole band (bandwidth is customized)
n Aluminum-alloy casing with IP65 protection has high resistance to dust, water and corroding
n Highly selective channel selector can process1 2 channels simultaneously
n No interference to BTS by adopting linear amplifier with high gain and low noise
n Adopting filter with highly selectivity and low insertion loss eliminates interference between uplink and downlink
n USB or RS-232 port provides a link to a notebook for local supervision or to the built-in wireless modem to communicate with the NMS (Network Management System) that can remotely supervise repeater’s working status and download operational parameters to the repeater
Applications:
To expand signal coverage or fill signal blind area where signal is weak or unavailable.
Outdoor: Airports, tourism regions, golf courses, tunnels, factories, mining districts, villages, etc;
Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots, etc.
Technical Specifications:
Items |
GSM 900&DCS1800 |
WCDMA |
||
Working Frequency (customized) |
Uplink |
907.8~914.8/1710.2~1717.4 MHz |
1960~1970 MHz |
|
Downlink |
952.6~959.8/1805.2~1818.4 MHz |
2150~2160 MHz |
||
Gain |
≥ 100dB |
|||
Gain Adjustment Range |
1~31 dB @ step of 1 dB |
|||
Output Power |
40 dBm |
|||
Adjacent Channel Power Ratio (ACPR) |
- |
P ≥ 31 dBm: (Offset 5MHz) ≤ 49dBc P ≥ 31 dBm: (Offset 10MHz) ≤ 54dBc P < 31 dBm: (Offset 5MHz) ≤ 50dBc P <31 dBm: (Offset 10MHz) ≤ 55dBc |
||
Voltage Standing Wave Ratio |
< 1.5 |
|||
Error Vector Magnitude (EVM) |
- |
≤ 12.5% |
||
Out-of-Band Gain |
- |
2.7 ≤ f_offset < 3.5 MHz: ≤ 60dB 3.5 ≤ f_offset < 7.5 MHz: ≤ 45dB 7.5 ≤ f_offset < 12.5 MHz: ≤ 45dB 12.5 ≤ f_offset: ≤ 30dB |
||
Peak Code Domain Error (PCDE) |
- |
≤ -35dB |
||
Noise Figure |
≤ 6dB |
|||
In-band Ripple |
≤ 3dB(GSM)/ ≤ 5dB(DCS) /≤ 3dB(WCDMA@3.84MHz) |
|||
System Delay |
≤ 5.0μSec |
|||
Spurious Emission |
Within working band: ≤ -15dBm/30kHz 9kHz~1GHz: ≤ -36dBm/30kHz 1GHz~12.75GHz: ≤ -30dBm/30kHz |
Comply with 3GPP TS 25.106 V6.0.0 |
||
In-band Intermodulation Attenuation |
≤ -40dBc / 30kHz (measured under rated output power) |
Comply with 3GPP TS 25.106 V6.0.0 |
||
I/O Impedance |
50Ω |
|||
RF Connector |
N-Type (Female) (one BTS Port and one MS port) |
|||
AGC / ALC |
Supported |
|||
Temperature Range |
Operation: -25°C ~ +55°C/ Storage: -30°C ~ +60°C |
|||
Relative HumidityRange |
≤ 95% (non condensing) |
|||
Power Supply (customized) |
DC +24V / AC 220V±15%, 50Hz |
|||
Backup Power Supply (optional) |
4 hours |
|||
Dimensions |
690mm X 420mm X 260mm |
|||
Weight |
55kg |
|||
NMS Monitoring Function |
TTL Signal (dry connection) generated for real-time alarm for door status, temperature, power supply, LNA, VSWR, etc; Remote control such as turn on/off, increasing/decreasing output power, etc; Real-time status for output/input power, UL/DL gain, all status of repeater etc. |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() | |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
