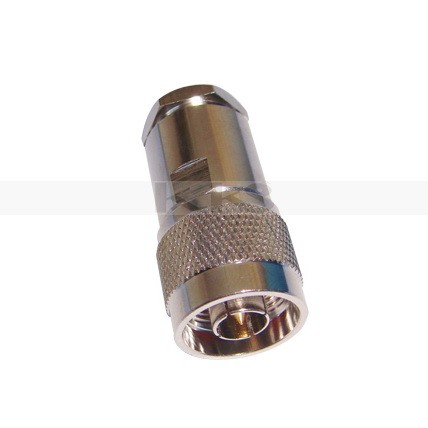

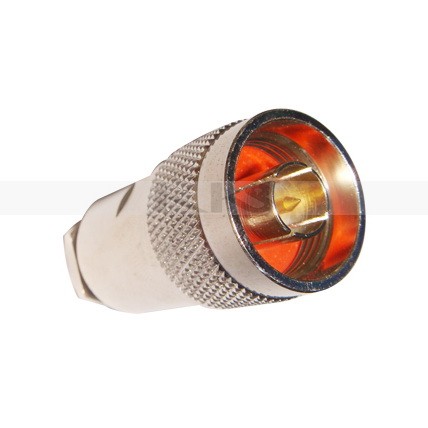

Coaxial Connector N-J7

Electrical Specifications:

Characteristic impedance: 50 ohm and 75 ohm

Withstanding voltage: 1500V

Frequency range: DC-4GHz

Contact resistance:

Center conductor: <=2mohm

Outer conductor: <=0.2mohm

Insulation resistance: More than 5000Mohm

VSWR: less than 1.30

Mechanical Specifications:

Hermetic seal: 0.00001cm3/s

Disengage force: >=0.6N

Durability: 500 cycles

Environmental Characteristics

Temp range: -65-+165degree

RH: 95%, 40 degree

Atmosphere: 4.4Kpa

Vibration:150 m/s2(10-2000Hz)
