Portable Drone Drone Detector with Direction Finder
Introductions

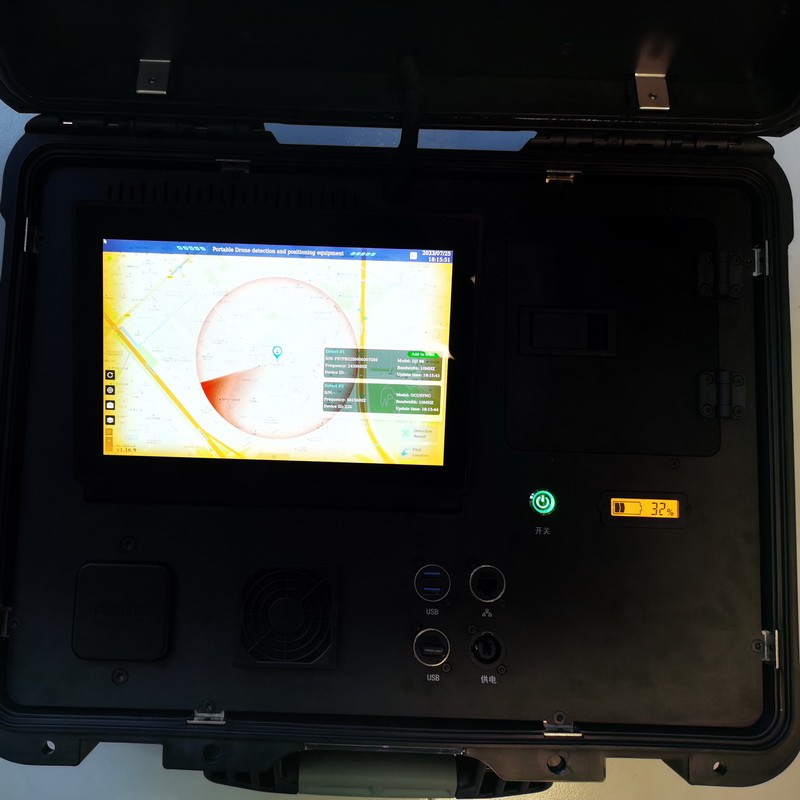

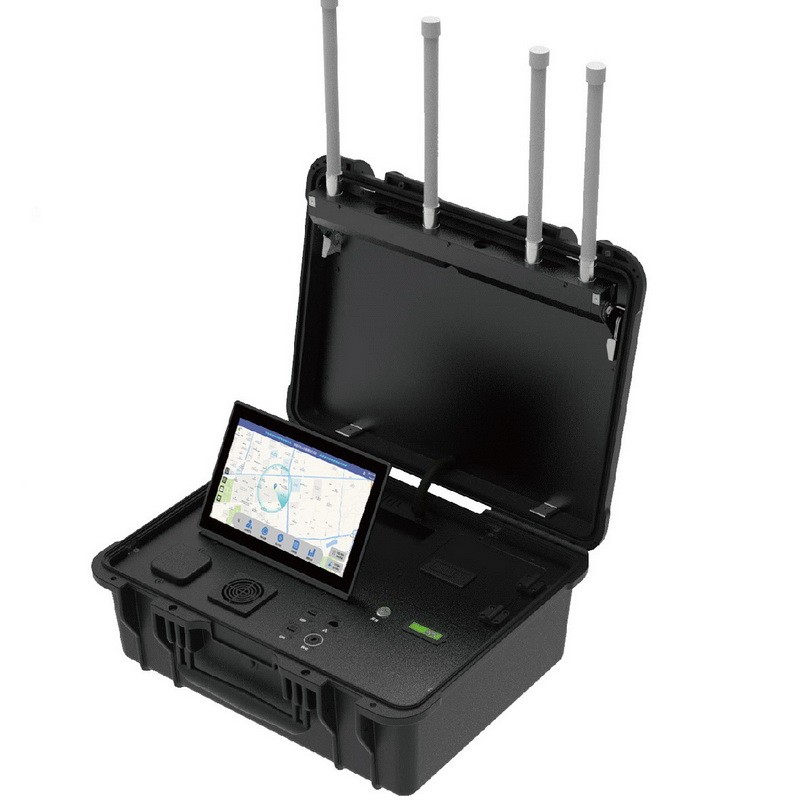

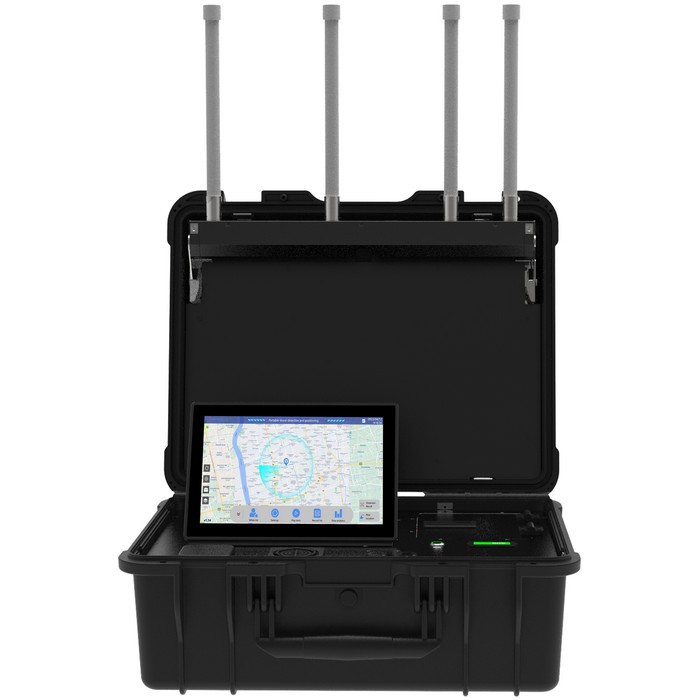

H1C drone detector is a portable drone monitoring platform, used for detection, identification, location and tracking of drones and pilots.
H1C is suitable for drone monitoring in scenarios such as major events, daily security patrol, VIP secret service, critical infrastructure etc. It works offline or online, with option to connect multiple devices to cover large area. It is highly portable, easy to carry and use, ready to deploy in seconds.
Functions
Drone detection and identification: H1C detects and identifies various name brand
drones such as DJI and AUTEL, as well as WiFi drones, FPVs, some DIY drones;
Trajectory tracking and display: The real-time flight trajectory of the tracked
drones can be displayed on the GIS map;
Pilot position display: The position of the pilot (remote controller) can
be tracked and displayed, and the location information can be updated in real
time;
Drone detailed information monitoring: The detailed information of drones and pilots can
be displayed in real time, including: drone ID, frequency, latitude and
longitude, model, altitude, height, pilot latitude and longitude, distance
between the device and the pilot (or the distance between the drone and the
reference point) and other information;
Sole identity: For each drone, H1C can identify its unique S/N
number;
Black and white list: Distinguish between “friend” and “foe”, H1C will
not alarm when a “friend” drone is detected, a “friend” or “foe” can be tagged
(only support DJI series drones);
Intrusion alarm: When the device detects a drone intrusion, an
audible and/or visual alarm is performed;
Map operation: Support online map and local map;
Map types: Support a variety of digital maps, including
AutoNavi, Bing, Baidu, Google, etc.;
Historic data playback: Record and playback of historic drone trajectories,
model, pilot location and home point and other information;
Data record query: User can query the historic data of the drones
detected according to the time period;
Data statistics: Historical drone detection data statistics and
graphical analysis;
Drone swarm tracking: Multiple drones can be tracked at the same time and
different drone trajectories are displayed with different colors;
Multi-device networking: Multiple devices can access the back-end
management platform at the same time for unified device management and data
management, and can merge the detection results of multiple devices (including
drones, pilots, and trajectories).
Note: Function 1,2,3,4,5,6 only apply to DJI
Mavic, Air, Mini, FPV, Avata series.
Product features
1) Portable
design, suitcase style, easy to carry and move;
2) Passive
detection, no signal emission, environmentally friendly;
3) Real-time
monitoring of drone signals in the surroundings to provide warning of drone
intrusion in advance;
4) Dual-power
supply design, can be powered by batteries or external source, which can adapt
to a variety of scenarios;
5) Detachable
battery allows for quick replacement;
6) Interfaces
for external keyboard and mouse;
7) Online
or offline upgrades;
8) Works
offline or online;
9) Touch
screen for easy operation;
10) Quick deployment, ready to use in seconds;
11) Self-diagnosis for quick troubleshooting;
12) Cabinet for antenna storage when the device is off
duty.
Specifications
Performance
#
Index
Parameter
Remark
1
Drone model that can be detected
DJI、AUTEL、FIMI、DAHUA、PowerVision、YUNEEC、UDIRC and other common brands of drones and some self-made FPVs and WiFi drones
2
Drone model that can be located
DJI Mavic、Air、Mini、FPV、Avata series
3
Frequency
900M、1.2G、2.4G、5.2G、5.8GHz
4
Range
1~10km radius
Varies due to environment and drone model
6
Altitude
0m~1000m
7
Drone swarm detection
≥5 drones
8
Detection result refresh time
4~6s
Varies due to environment and drone model
9
Azimuth error
≤1.5°(RMS)
10
Location error
≤10m
11
Ready to use
≤120s
Mechanics
1
Weight
≤18kg
Adaptor excluded
2
Size
(520mm*415mm*224mm)±2mm
Case closed
Electronics
1
Power consumption
≤100W
2
External supply voltage
100 ~ 220V AC
3
Battery run time
≥4h
Dual batteries
Environment adaptability
1
Operating temperature
-20~65℃
2
Storage temperature
-40~70℃
3
Waterproof
IP65
Case closed
Screen
1
Screen
size
10.1
inches
2
Brightness
500cd/m²
3
Resolution
1080P
1920*1200
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() | |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
