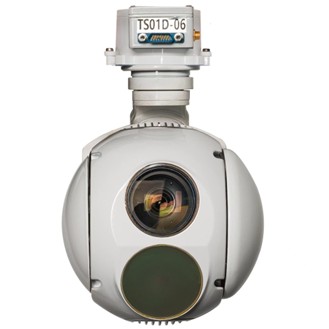

HD Photoelectric Drone Camera
Model: TS01D-06
Technical Specifications
a.
Contour dimension: 120 mm *171 mm
b. Weight: <1.5 kg
c. Visible Light: 30X, 0.4um~0.9um;
d. Infrared: 640*512, 8~14um wavelength, 25mm
focus;
e.
Environmental conditions
Storage temperature: -40℃~+85℃
Operating temperature: -20℃~+65℃
f. Power:≤ 15
W (Normal) ≤ 30 W (Peak)
g. Searching Range: n * 360°
(Azimuth); -110° ~ +10° (Pitch)
h. Angle Accuracy: <2mrad;
i. Stability Accuracy: <100urad
j. Video output: HD-SDI, 1080P, 30Hz.
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() | |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
