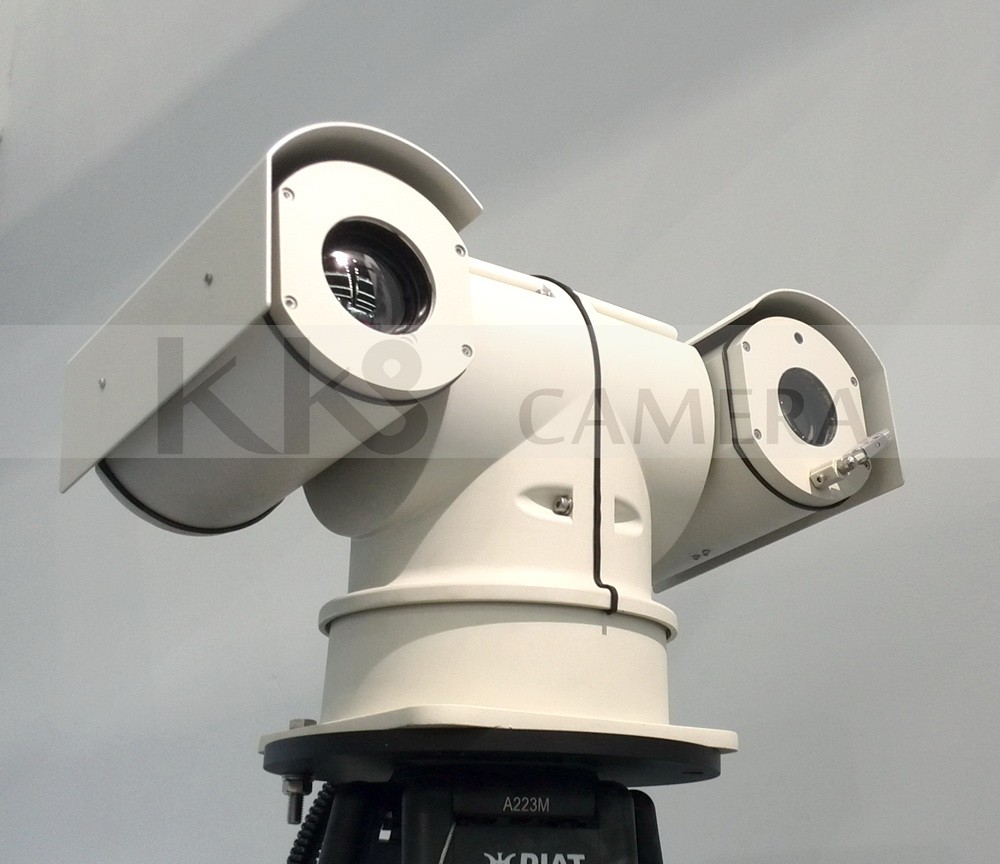

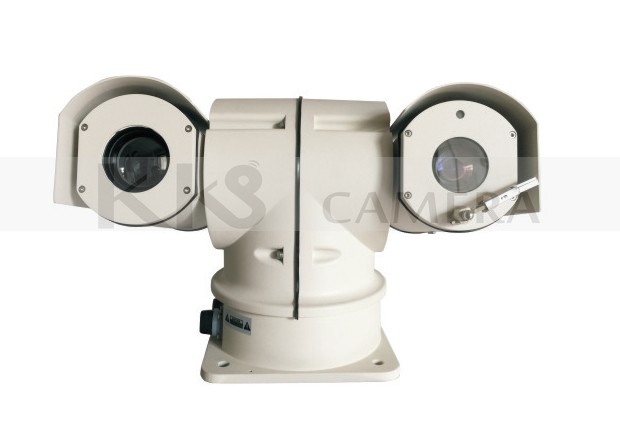

HD Optical & Thermal Imaging & All-in-one High Speed PTZ Camera
Model: TH-1000MRCX-HD
Features:
1. Visible light, thermal sensing dual-channel imaging technology, integrated structure, 24 hours monitoring;
2. Thermal imaging using international advanced uncooled polysilicon, micro heat detectors 384x288 or 640X480 line;
3. Thermal imaging fixed focal length lens, visual field switch, continuous zoom selectable, motorized focus to obtain a clearer picture of night vision; according to the focal length of the lens can detect the target with distance up to 1km;
4. Thermal imaging integrated temperature detection module, real-time analysis of target
area temperature changes, automatic warning of fire detected;
5. High-definition video camera with penetrating fog imaging function, mechanical filter switch, 240 gray levels, automatic black level, contour correction;
6. Magnification zoom lens to telephoto needs, with auto-focus, preset function；
7. Preset reach to 256, support apple peeling scanning;
8. Resistance to harsh environments with advanced reinforcement, proof from dust, rain, salt spray, vibration and shock, IP66 level;
9. HD lens auto-focus function;
10. Maximum temperature display, mouse temperature tracking, multi-ring temperature contrast temperature alarm, multi-mode temperature alarm.
Applications:
Forest fire prevention, reservoirs, landslides, substations, power plants, petrochemical field, fireworks identification alarm, traffic intelligence analysis, runways, airport monitoring, smart city, police vehicle monitoring, etc.
Technical Specifications:
|
Mechanical Characteristics |
||
|
Application environment |
Outdoor |
|
|
Installation |
Flat base mounting |
|
|
Power supply |
DC24V ±10% (50VA ) |
|
|
Power Consumption |
≤50W |
|
|
Temperature &Humidity |
-35℃~+55℃& 35%～90% |
|
|
Protection level |
IP66, anti-rust, anti-corrosion coating |
|
|
Weight |
6Kg |
|
|
Size |
210*246*375mm |
|
|
Visible Light Imaging |
||
|
Imaging |
1/4”Exview HAD CCD |
|
|
Resolution |
1920*1080P |
|
|
Synchronous System |
Intenal/extrinsic |
|
|
Video Output |
VBS 1.0VP-P/75 |
|
|
White balance |
Auto/Manual |
|
|
Scanning |
15.625KHz(H) 50HZ(V) |
|
|
Horizontal resolution |
1080P |
|
|
SNR |
>50DB |
|
|
Electronic Shutter |
1/1~1/10,000S/1/50~1/10,000S |
|
|
Min illumination |
Color 0.002Lux, Black-and-White 0.0002Lux |
|
|
Focal length |
F=4.1~73.8mm/3.5~91mm/3.4~122.4mm |
|
|
Zoom factor |
Total 216x optical 18x digital 12x |
|
|
Iris / Zoom |
Auto/manual |
|
|
Infrared Thermal imaging |
||
|
Detector Type |
Focal plane array(FPA), Uncooled VOx, refrigeration micro bolometer |
|
|
Pixels |
384x288/ 640X480 |
|
|
Spectral range |
8-14μm |
|
|
Lens focal length |
30mm,50mm,75mm |
|
|
Focus |
Motorized focus, or auto focus |
|
|
Temperature Mode |
The maximum temperature display, mouse temperature tracking, multi-ring temperature contrast temperature alarm, multi-mode temperature alarm |
|
|
Auto Focus Lens |
All the target near or far can be auto focused |
|
|
Swatches control |
Black hot, incandescent and other 11 kinds of swatches switch |
|
|
Image Processing |
Detail Enhancement (DDE), automatic gain control (AGC) |
|
|
Fire Recognition |
Integrated temperature measurement processor, real-time analysis of the target area temperature, and fire automatic warning |
|
|
All-round Turntable & Shield |
||
|
Horizontal preset speed |
100º/S |
|
|
Vertical preset speed |
80º/S |
|
|
Horizontal manual control speed |
0~60º/S |
|
|
Vertical manual control speed |
0~40º/S |
|
|
Horizontal angle |
360º |
|
|
Vertical angle |
-90~+90º |
|
|
Preset |
Up to 256 |
|
|
Control Interface |
Multi-protocol,RS485 |
|
|
Horizontal preset speed |
100º/S |
|
|
Vertical preset speed |
80º/S |
|
