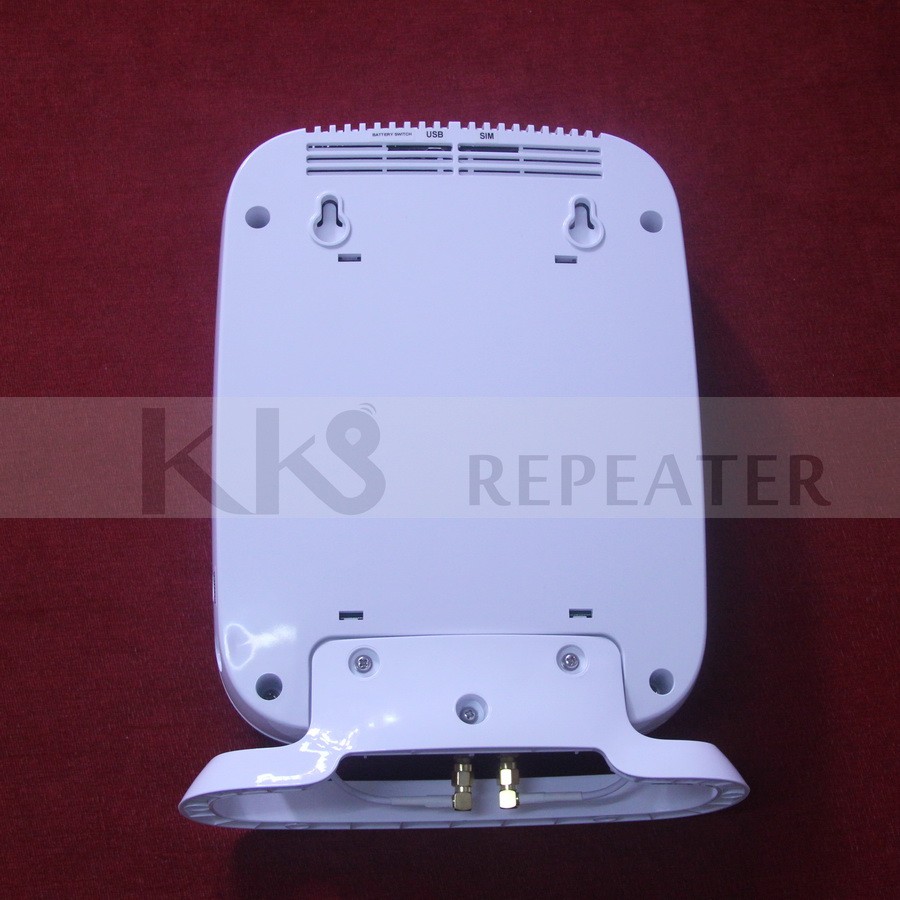

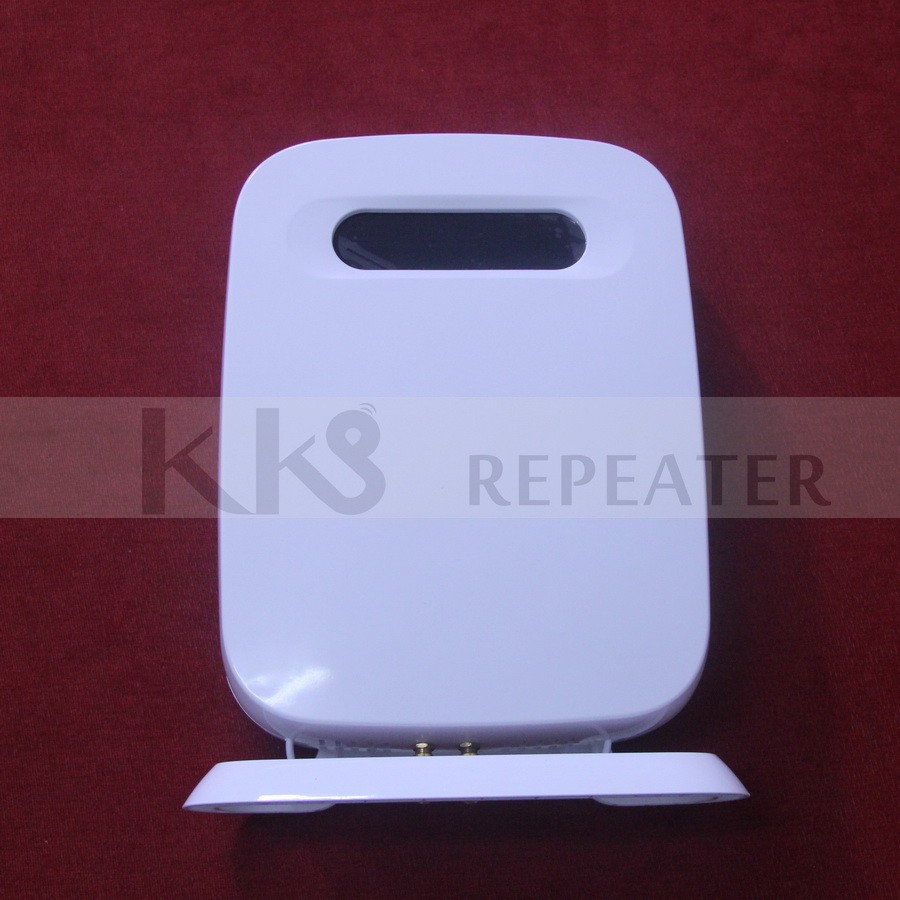

GSM 900 ICS Pico Repeater
Model: KR-1575GI
Introductions:
The GSM 900 ICS PICO Repeater is designed to provide a more cost-effective solution than adding a new Base Transceiver Station (BTS) to improve signal coverage and communication quality in GSM 900 system. And its easy installation and maintenance can help carriers get fast return.
The repeater is working as a relay between the BTS and mobiles. It receives the low-power signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Coverage Antenna to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
Features:
n High system gain
n Plug-and-Play
n 30dB Adaptive Echo Interference Cancellation system
n Linear power amplification to effectively suppress inter-modulation and spurious emission
n Smart Automatic Level Control (ALC) ensures output level stable and adjustable continuously
n Adopting filter with highly selectivity and low insertion loss eliminates interference between uplink and downlink
n Working frequency bandwidth adjustable
Applications:
To expand signal coverage or fill signal blind area where GSM 900 signal is weak or unavailable.
Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots, etc.
Specifications:
Items |
Specifications |
|
Working Frequency (customized) |
Uplink |
890MHz –915MHz(customized) |
Downlink |
935MHz –960MHz(customized) |
|
Output power |
Uplink |
10dBm |
Downlink |
15dBm |
|
Maximum Gain ( UL and DL ) |
75 dB |
|
Setting of attenuation |
30 dB attenuation |
|
System noise figure |
5dB @ max. gain |
|
AGC ( Automatic Gain Control ) |
Auto isolation detection and gain control |
|
Power supply |
100 V - 240 V AC 50Hz |
|

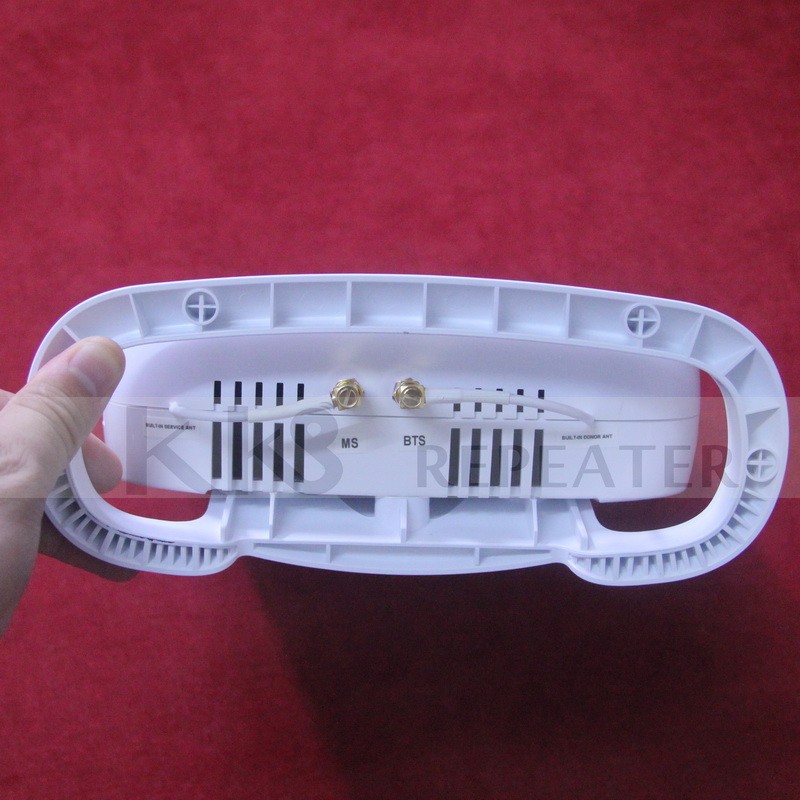

RF Input / Output connectors |
SMA-female |
|
Interface Software |
Window 7/Vista/XP base |
|
Interface Cable |
Interface cable USB ( Laptop ) to Repeater |
|
Repeater Setting |
Able to manually set gain and attenuation |
|
Weight |
1 Kg |
|
Size |
151mm X151mmX26mm |
|
I/O Impedance |
50Ω |
|
Serving antenna |
Using external antenna |
|
Input Max. for normal work |
-55dBm |
|
Gain Stability |
3dB |
|
ICS Features |
20 dB isolation improvement |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() | |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
