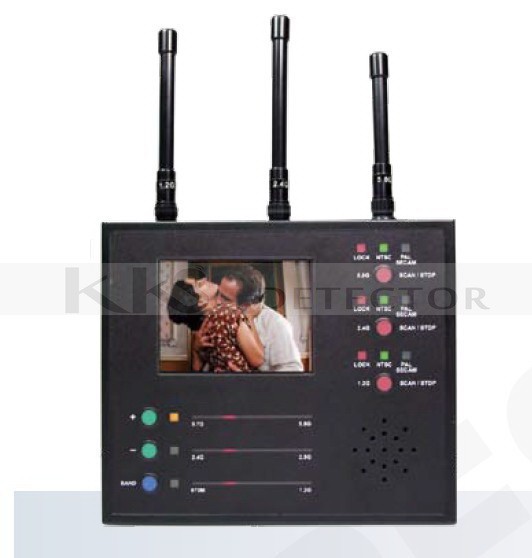

Model: KD-125C

Introductions:

This new breakthrough Wireless Camera video scanner covers three frequency bands:1.2GHz-2.4GHz-5.8GHz.the unique 5.8GHz scanning technology makes this device the only one of its kind.

This detector detects and displays multiple hidden wireless cameras in multiple frequency bands up to 300 feet(depending on output power of source transmitter).It scans 1.2GHz,2.4GHz and 5.8GHz three frequency bands synchronously within 30 seconds.

This detector has indications of NTSC or PAL/SECAM to identify the video system of detected signal.The Stop/Scan button can latch or release the image.The speaker will display the voice if there is audio signal with the wireless camera signal.The 3 frequency bands have their own Stop/Scan button and video system indicator.

This detector has 3 AV outputs for recording the video and audio of the 3 frequency bands at the same time.

Features:

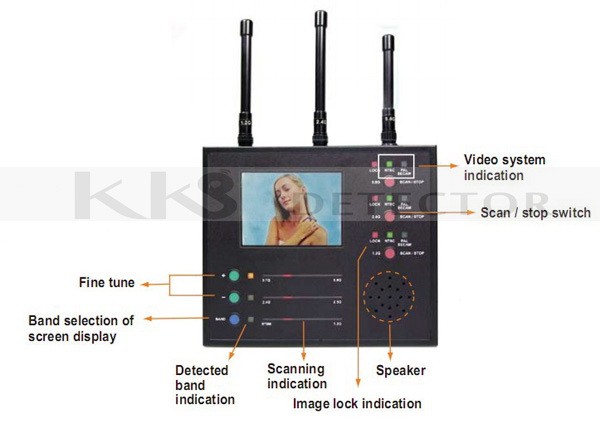

1.      Unique 1.2-2.4-5.8 GHz scanning technology

2.      3.5 inches high resolution LCD Monitor, Color or B/W camera compatible.

3.      Video protocol auto-switching for NTSC,PAL/SECAM.

4.      NTSC or PAL/SECAM video format indication ×3 for 3 frequency bands.

5.      3 frequency bands auto scanning.

6.      “Fine Tuning” switches for mending screen image.

7.      Scanning LED indication × 3 for 3 frequency bands synchronous scanning.

8.      3.5mm Video/Audio output jack×3 for 3 bands synchronous recording.

Technical Specifications:

Dimension: L190×H140×T40mm(antenna length not included)

Weight: About 860g(including rechargeable battery)

Power:  Switching power adaptor, Build-in rechargeable battery

Battery life: About 40 minutes after full charge

Detecting Frequency: 1.2GHz, 2.4GHz, 5.8GHz three frequency bands

Monitor:  3.5 inches high resolution LCD,Color or B/W camera compatible

Scan indication1:  NTSC or PAL/SECAM video format indication

Scan indication2:  Scanning LED indication×3 for 3 frequency bands

Warning mode: 1.Acoustic display

                           2. Silent detection through earphone

Scanning band: 1.2GHz-2.4GHz-5.8GHz three bands synchronous scanning

Monitor display: 1.Auto band switching

                             2. Band selection switch for manual band change

Audio Demodulation: 1.2GHz band  6.0MHz,6.5MHz,5.5MHz switable　

　                                   2.4GHz band  6.0MHz,6.5MHz,5.5MHz switable  　　　　　　　　　　　　　　　  5.8GHz band  6.0MHz, 6.5MHz switable

Audio/Video output:  AV outputsx3 for 3bands synchronous recording,with3.5mm

video/audio output:  jack x 3 (for recording)

Detecting Distance: up to 300 feet(depending on output power of source transmitter)

The detecting distance will be varied depending on the type and output power of signal sources.

Applications:

1. Examination (avoid any leakage of the exam)

2. Hotels (Protect personal privacy)

3. Dressing room of the mall( Avoid any spy camera inside)

4. Boss or leader’s office (Avoid any loss information of important meeting)

5. Meeting rooms (Protect the information of the meeting)

6 .Police use it to spy the suspects
