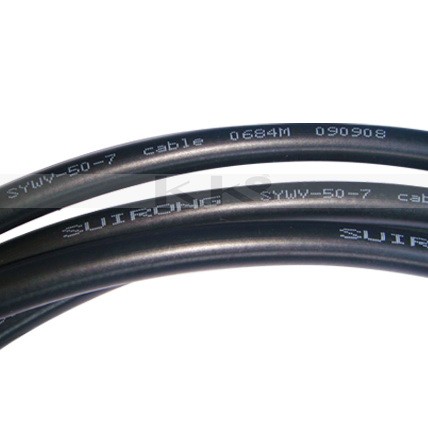

RF Coaxial Cable 7D-FB (50-7)

Basic Construction

Center Conductor: 2.60mmBC/CCA

Dielectric:7.30mmFoamPE

Shield: Al Foil +TC Braiding

Braid Coverage: 35%-85%

Jacket: 9.80±0.20mmPVC /PE

Jacket Thickness:0.80mm

Basic Characteristics

Nominal Impedance: 50± 2OHM

Nominal Velocity of Propagation: 82%

Nominal Capacitance: 84pF/m

Sparker Test: 3000VAC

Cutoff Frequency: 15.8GHz

V. S. W. R.: ≤ 1.3

Attenuation:68 °F(20 ºC)
