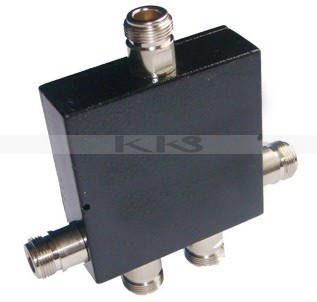

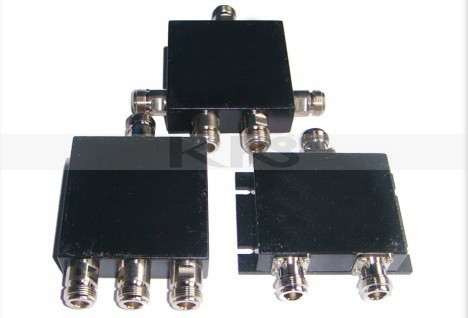

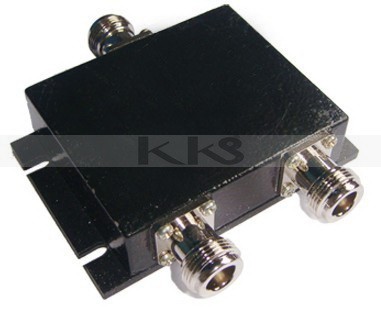

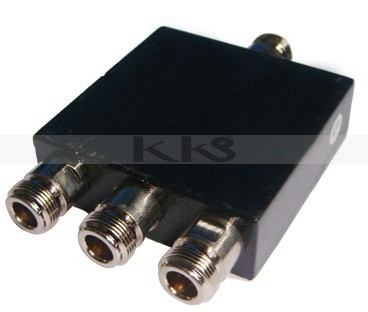

RF Power Splitter 80-2500MHz
Technical Specifications
|
Items |
2 way |
3 way |
4 way |
|
Model |
KS-CL2 |
KS-CL3 |
KS-CL3 |
|
Frequency Range (MHz) |
806~960 & 1710~2500 |
||
|
Splitter Loss (dB) |
3 |
4.8 |
6 |
|
Insertion Loss (dB) |
≤0.3 |
≤0.4 |
≤0.6 |
|
Directivity (dB) |
≥20 |
||
|
Inter-modulation |
≥140dBc (+43dBm*2) |
||
|
VSWR |
≤1.25 |
||
|
Impedance (Ω) |
50 |
||
|
Power Handling(W) |
50 |
||
|
RF Connector |
N-Female |
||
|
Operating Temperature |
-35 ºC ~+60 ºC |
||
