1） Passive detection: does not emit any electromagnetic signals, possesses no electromagnetic environmental pollution, environmentally friendly.

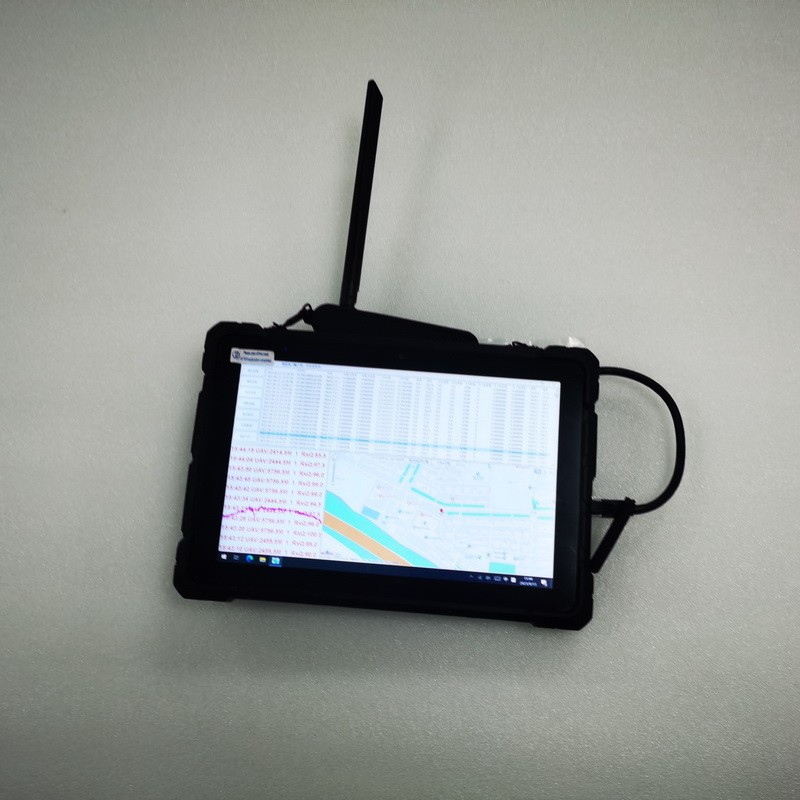

2） Large touch screen interaction: Adopting a 6.4-inch large screen touch design, the operation is simple, convenient, and fast.
3） Mobile and portable: Exquisite and lightweight in appearance, easy to hold and carry, switch on ready to use.
4） Long lasting endurance: Equipped with a 4500mAh high capacity battery, it can operate continuously for up to 4 hours.
5） Standard charging interface: Type-c standard charging interface, can be connected to an external power adapter or mobile power supply for charging.
Specifications
Table 2 Product Performance Indicators
|
# |
Index |
Parameter |
Notes |
|
1 |
Locatable drone models |
DJI, Air, Mini, FPV, Avata, etc |
DJI with OcuSync protocols |
|
2 |
Detection frequency band |
2.4GHz、5.8GHz |
|
|
3 |
Range |
1~2km |
Varies due to environment and drone model |
|
4 |
Positioning accuracy |
≤5m |
Varies due to environment and drone model |
|
5 |
Location refresh time |
≤30s |
|
Table 3 Product Mechanical Parameters
|
# |
Index |
Parameter |
Notes |
|
1 |
Dimension |
L*W*H420mm*340mm*190mm |
|
|
2 |
Weight |
1kg |
Without antenna |
Table 4 Product Electrical Characteristics
|
# |
Index |
Parameter |
Notes |
|
1 |
Battery capacity |
4500mAh |
Built in lithium battery |
|
2 |
Battery life |
~4 hours |
Screen brightness is 20%, temperature is 25℃ |
|
3 |
Charging duration |
~2.5 hours |
Using the original charger |
Table 5 Environmental Adaptability
|
# |
Index |
Parameter |
Notes |
|
1 |
Working temperature |
-20~50℃ |
|
Table 6 Touch screen parameters
|
# |
Index |
Parameter |
Notes |
|
1 |
Screen size |
6.4 inches |
AMOLED |
|
2 |
Screen resolution |
2400 * 1080 pixels |
|
|
3 |
Screen refresh rate |
120Hz |
|
Table 7 System Storage Parameters
|
# |
Index |
Parameter |
Notes |
|
1 |
Memory |
8GB |
|
|
2 |
Storage |
128GB |
|
Table 8 System Operating Parameters
|
# |
Index |
Parameter |
Notes |
|
1 |
Operating system |
Android |
|
|
2 |
Network environment |
Supports internet and single machine offline mode operation |
|
