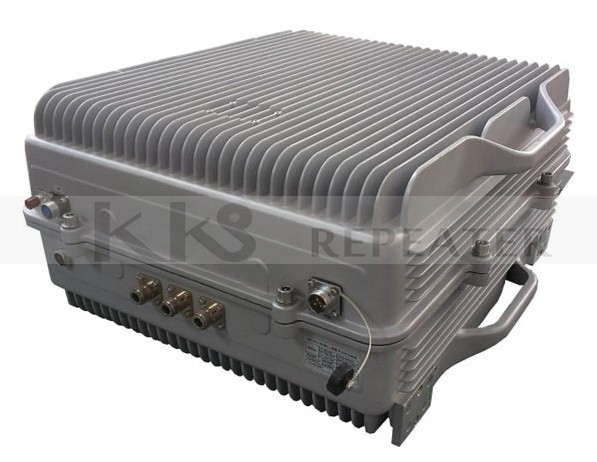

Items

GSM 900&DCS1800

WCDMA

Working Frequency

(customized)

Uplink

907.8~914.8/1710.2~1717.4 MHz

1960~1970 MHz

Downlink

952.6~959.8/1805.2~1818.4 MHz

2150~2160 MHz

Gain

≥ 100dB

Gain Adjustment Range

1~31 dB @ step of 1 dB

Output Power

40 dBm

Adjacent Channel Power Ratio (ACPR)

-

P ≥ 31 dBm: (Offset 5MHz)    ≤ 49dBc

P ≥ 31 dBm: (Offset 10MHz)   ≤ 54dBc

P < 31 dBm: (Offset 5MHz)    ≤ 50dBc

P <31 dBm: (Offset 10MHz)   ≤ 55dBc

Voltage Standing Wave Ratio

< 1.5

Error Vector Magnitude (EVM)

-

≤ 12.5%

Out-of-Band Gain

-

2.7 ≤ f_offset < 3.5 MHz: ≤ 60dB

3.5 ≤ f_offset < 7.5 MHz: ≤ 45dB

7.5 ≤ f_offset < 12.5 MHz: ≤ 45dB

12.5 ≤ f_offset: ≤ 30dB

Peak Code Domain Error (PCDE)

-

≤ -35dB

Noise Figure

≤ 6dB

In-band Ripple

≤ 3dB(GSM)/ ≤ 5dB(DCS) /≤ 3dB(WCDMA@3.84MHz)

System Delay

≤ 5.0μSec

Spurious Emission

Within working band: ≤ -15dBm/30kHz

9kHz~1GHz: ≤ -36dBm/30kHz

1GHz~12.75GHz: ≤ -30dBm/30kHz

Comply with 3GPP TS 25.106 V6.0.0

In-band Intermodulation Attenuation

≤ -40dBc / 30kHz (measured under rated output power)

Comply with 3GPP TS 25.106 V6.0.0

I/O Impedance

50Ω

RF Connector

N-Type (Female) (one BTS Port and one MS port)

AGC / ALC

Supported

Temperature Range

Operation: -25°C ~ +55°C/ Storage: -30°C ~ +60°C

Relative HumidityRange

≤ 95% (non condensing)

Power Supply (customized)

DC +24V / AC 220V±15%, 50Hz

Backup Power Supply (optional)

4 hours

Dimensions

690mm X 420mm X 260mm

Weight

55kg

NMS Monitoring Function

TTL  Signal (dry connection) generated for real-time alarm for door status, temperature, power supply, LNA, VSWR, etc;

Remote control such as turn on/off, increasing/decreasing output power, etc;

Real-time status for output/input power, UL/DL gain, all status of repeater etc.
