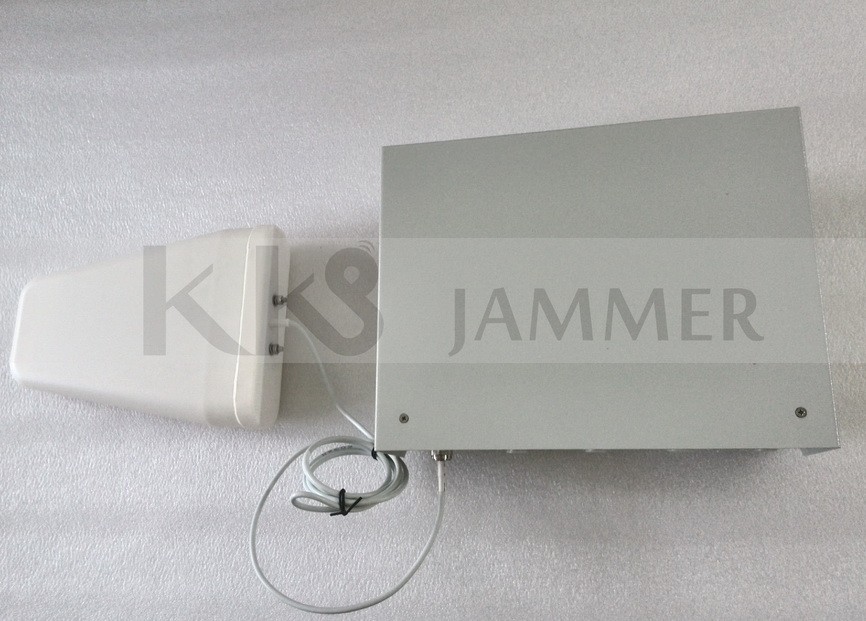

75W Adjustable Quadcopter Drone Jammer

Model: KJ-75D5

Introductions:

 The KJ-75D5 is Medium Power commercial drone Jammer, uses state-of-art technology for maximum performance and reliability

Features:

Frequency bands and output power selectable

Each frequency band be controlled independently by different power adjusting snobs

Easy operation and installation

Remote Monitoring software available to control the Jammer (optional)

Applications:

Any sensitive locations where the quadcopter drones are not allowed, such as prisons, military bases.

Technical Specifications:

Jamming frequency bands: 5 or 6 frequency bands selectable of  the frequency bands used by commerical quadcopter drones.

RF output power: up to 75W

Internal Modulation: FM Hopping Frequency and Sweeping

Signal Source: PLL Synthesized & VCO

Effective jamming range: 10-100mdepending on the  environment signal strength;

Jamming target: 315/433/868/915MHz, GPS L1/L2, 1.2G, 2.4G, 5.8G selectable

Remote Control: Remote Monitoring available by IP Network (optional)

Remote Control Interface: RJ45 (optional)

Power supply: 220VAC/110VAC

Continuous working hours: Long time

Antennas type: 5 to 6pcs high gain Directional LPDA antennas or Omni Antennas

Device Dimension: 560*330*270mm

Device Net Weight: 10kgs

Operating Temperature: -20ºC - +50ºC

Humidity: 5% - 95%
