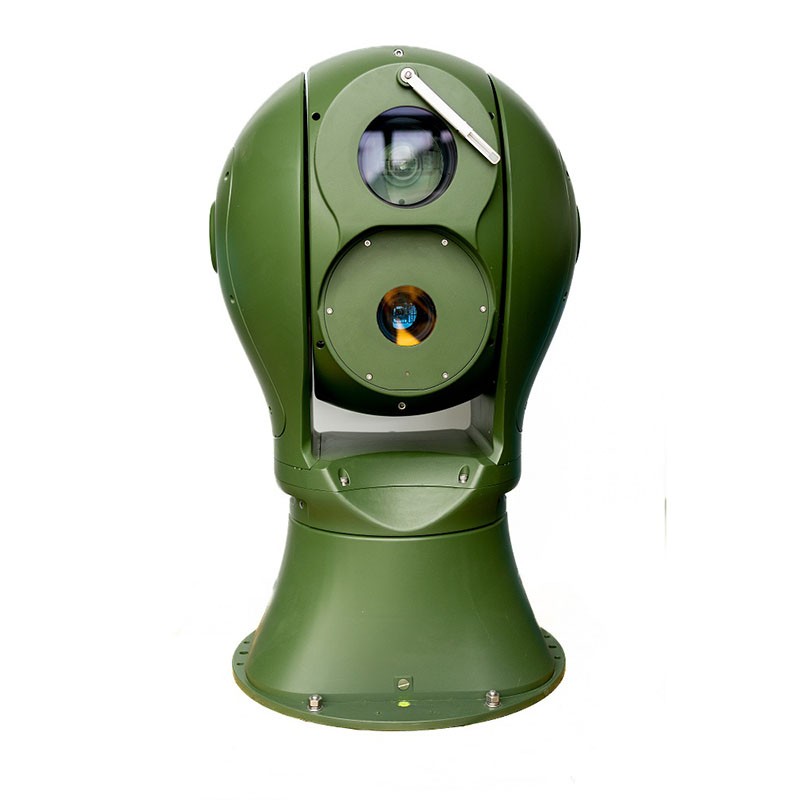

Long distance Drone Detection & Tracking Camera
Introductions:
l The Video
Detection and Tracking Camera will perform a horizontal 360° fixed-speed
inspection of the specific pitch angle by default.
l The target
attribute can be distinguished by identifying the probability level to
distinguish non-UAV targets such as birds to reduce the false alarm rate.
l Through a
deeply customized machine vision algorithm, the target can be identified even
with a slight virtual focus
l The camera
automatically tracks the identified drone targets and performs real-time video
forensics by the control system
Technical Specifications:
Device
Item
Index
EO
Camera
Resolution
1080p
Pixel
2 million
Illuminance
≥ 0.0021ux
Focal length
22.5~755mm，34x Optical
Angle of View
Horizontal field of view: 0.54°~18.12° (wide-tele)
Vertical field of view: 0.41°~13.48°
(wide-tele)
View Range
Pan Range: 360° endless
Tilt Range: -45°~+90°
Rotation speed
Pan Speed ≤80°/s，Tilt
Speed ≤60°/s
Thermal
Sensor
Uncooled focal plane sensor
Pixel
640*480
Infrared waveband
8~14um
Focal length
31~155mm
Angle of View
Horizontal field of view: 4.02°~19.9°
(wide-tele)
Vertical field of view: 3.21°~15.9°
(wide-tele)
Laser Range
Finder
Laser light source
Infrared laser
Wave length
810nm
Power
15w
Ranging capacity
Up to 20km
System
UAV identification & tracking range
Clear sky：≤4km
Night vision：≤2km，Thermal:
≤2km
Identification time
＜3S
IP
66
