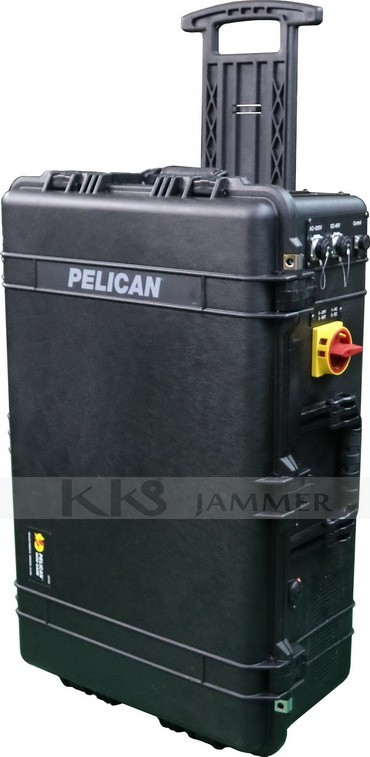

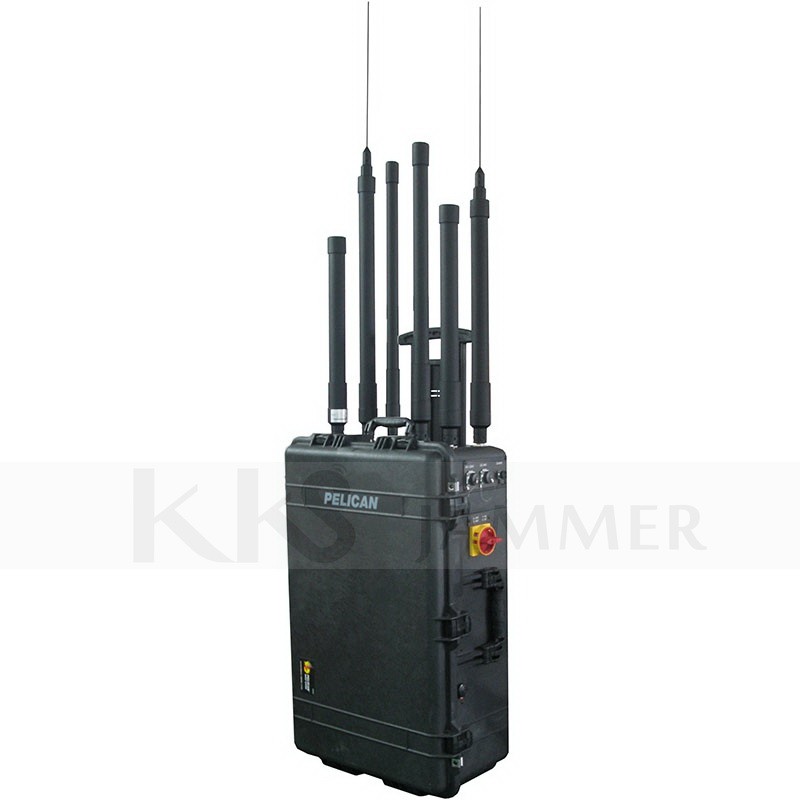

High Power Digital Portable Bomb Jammer

Model: KJ-360M6 / KJ-400M8 / KJ-500M10

Introductions:

The Jammer is High Power Portable Bomb jammer;

The Jammer uses state-of-art technology for maximum performance and reliability;

The Jammer  has robust mechanical design, ready for use;

The system use Broadband Omni-Directional antennas for 360 degree protection.

Features and Advantages:

Frequency bands and output power selectable;

Integrated main equipment, battery, and antennas which increases mobility of the device;

Different frequency bands can be controlled independently by different switches;

Local or wire control operation mode can be selected based on actual environment;

AC or DC power supply can be selected;

Power Amplifiers protection design ensures the working reliability of the device.

Applications:

Prevent remote controlled improvised explosive devices from being activated and stop terrorist attacks;

Protect explosives handling experts;

Protect important places such as bus/train stations, plazas, schools, mass gatherings, stadiums, etc;

Risk mitigation and explosives removal in specified spots;

Police and S.W.A.T uses for VVIP convoy, ECM, anti drug, riot control, etc;

Military uses for border control, ECM etc.

Technical Specifications:

RF Characteristics:

Working frequency range: 20MHz to 6000MHz ranges selectable

Jamming module number: 6 to 10 RF modules selectable;

RF output power: 360 to 500W selectable;

Internal Modulation: Direct Digital Synthesis (DDS);

Effective jamming ranges: 50-500m depending on the environment signal strength;

Jamming target: toy remote control, car remote control, pager, Walkie Talkie, CDMA, GSM, DCS, PCS,3G, 4G, WIFI, WIMAX, etc;

Jamming Frequency bands: more than 20 bands selectable

System Protection: Over-Heat, Over-current, Over Voltage and VSWR Protection

System Cooling: Smart Cooling solution with Heat sink and air forced fans

Remote Control: Wire Control Panel and Monitoring Software available;

Power supply: 220VAC, 24-28VDC;

Continuous working hours: Long time (by AC 220V);

Backup Battery Capacity: 24-28VDC/ 50-80AH

Antennas type: high gain Omni Antennas;

Antenna number: 6 to 10 antennas;

Physical Data:

Main equipment Dimension: 630*495*355mm;

Main equipment Weight: approx. 36kgs;

Environment of Operation:

Operating Temp: -35ºC to +80C;

Humidity: up to 90%.

Jamming Power Division:
