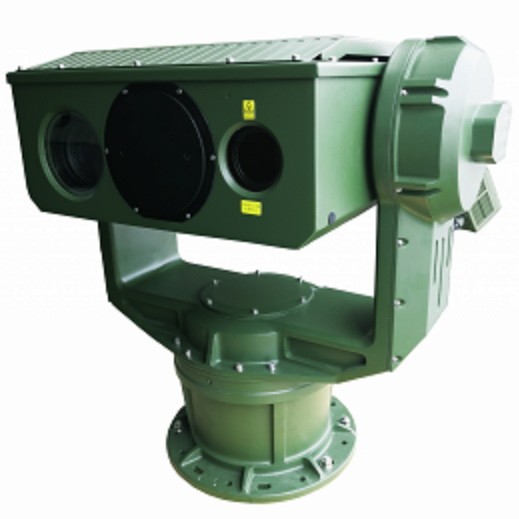

HD Drone Detection & Tracking Camera
Introductions
l The Video Detection and Tracking Camera will perform a horizontal 360° fixed-speed inspection of the specific pitch angle by default.
l The target attribute can be distinguished by identifying the probability level to distinguish non-UAV targets such as birds to reduce the false alarm rate.
l Through a deeply customized machine vision algorithm, the target can be identified even with a slight virtual focus
l The camera automatically tracks the identified drone targets and performs real-time video forensics by the control system
Technical Specifications
|
Device |
Item |
Index |
|
EO Camera |
Resolution |
1080p |
|
Pixel |
2 million |
|
|
Illuminance |
≥ 0.0021ux |
|
|
Focal length |
22.5~755mm，34x Optical |
|
|
Angle of View |
Horizontal field of view: 0.54°~18.12° (wide-tele) |
|
|
Vertical field of view: 0.41°~13.48° (wide-tele) |
||
|
View Range |
Pan Range: 360° endless |
|
|
Tilt Range: -45°~+90° |
||
|
Rotation speed |
Pan Speed ≤80°/s，Tilt Speed ≤60°/s |
|
|
Thermal |
Sensor |
Uncooled focal plane sensor |
|
Pixel |
384*288 |
|
|
Infrared waveband |
8~14um |
|
|
Focal length |
31~155mm |
|
|
Angle of View |
Horizontal field of view: 4.02°~19.9° (wide-tele) |
|
|
Vertical field of view: 3.21°~15.9° (wide-tele) |
||
|
Laser Range Finder |
Laser light source |
Infrared laser |
|
Wave length |
810nm |
|
|
Power |
15w |
|
|
Ranging capacity |
Up to 20km |
|
|
System |
UAV identification & tracking range |
Clear sky：≤2.4km |
|
Night vision：≤1.2km，Thermal: ≤700m |
||
|
Identification time |
＜3S |
|
|
IP |
66 |
