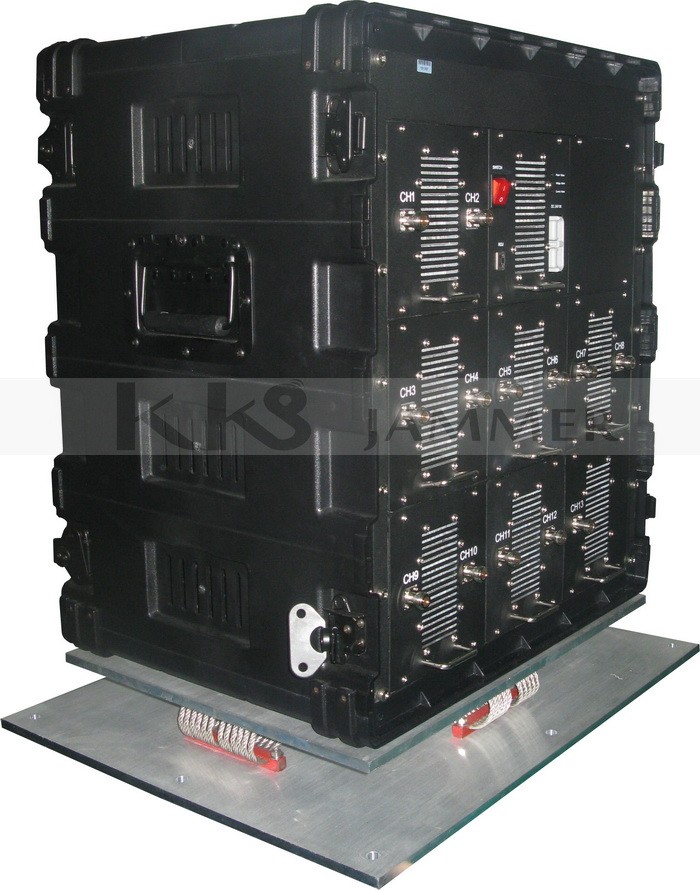

20-6000MHz Full Band Vehicle-Mounted Digital Bomb Jammer
Model: KJ-800V14
Introductions:
KJ-800V14 is a vehicle mounted very high power jammer designed for blocking remote controlled improvised explosive devices (RCIED) Used by terrorist
KJ-800V14 is using state-of-art technology for maximum performance and jamming the signals transmits to activate bombs
KJ-800V14 controlled by Microprocessor for programming and use unique internal modulation technique based on mixed signal for maximum jamming efficiency.
Jamming radius of the KJ-800V14 depends on several conditions such astransmitter frequency and output power, distance to receiver, and obstacles between, etc
Features:
Maximum coverage range of 20 to 6,000MHz
High efficient output power, long jamming radius
Continuous and simultaneous jamming with no gaps
DDS Jamming technology to make the Frequency range more precise
Slow start up design of circuit to make the device work stably.
Perfect Self Protection: Over Heat protection, Over current protection, High Voltage and low Voltage protection, VSWR protection
Easy operation, using Wire Control Panel or Windows software to monitor the system

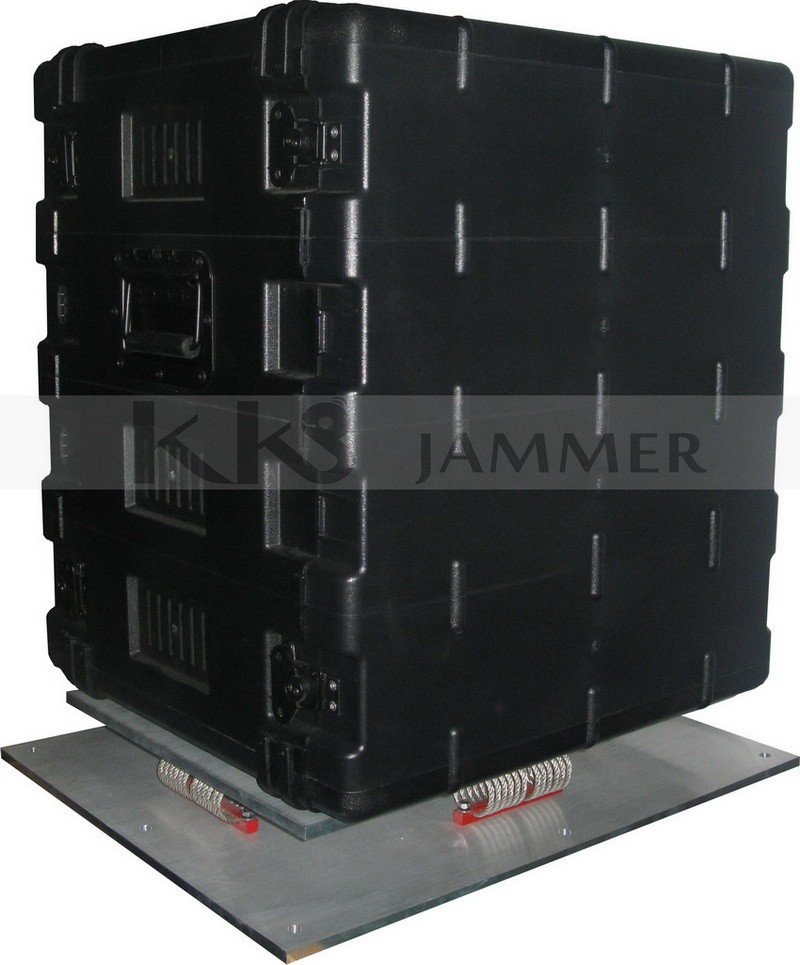

Shock Absorber design to protect the device from damage because of high speed driving
Integrated backup battery can support the Jammer to work one hour
Applications:

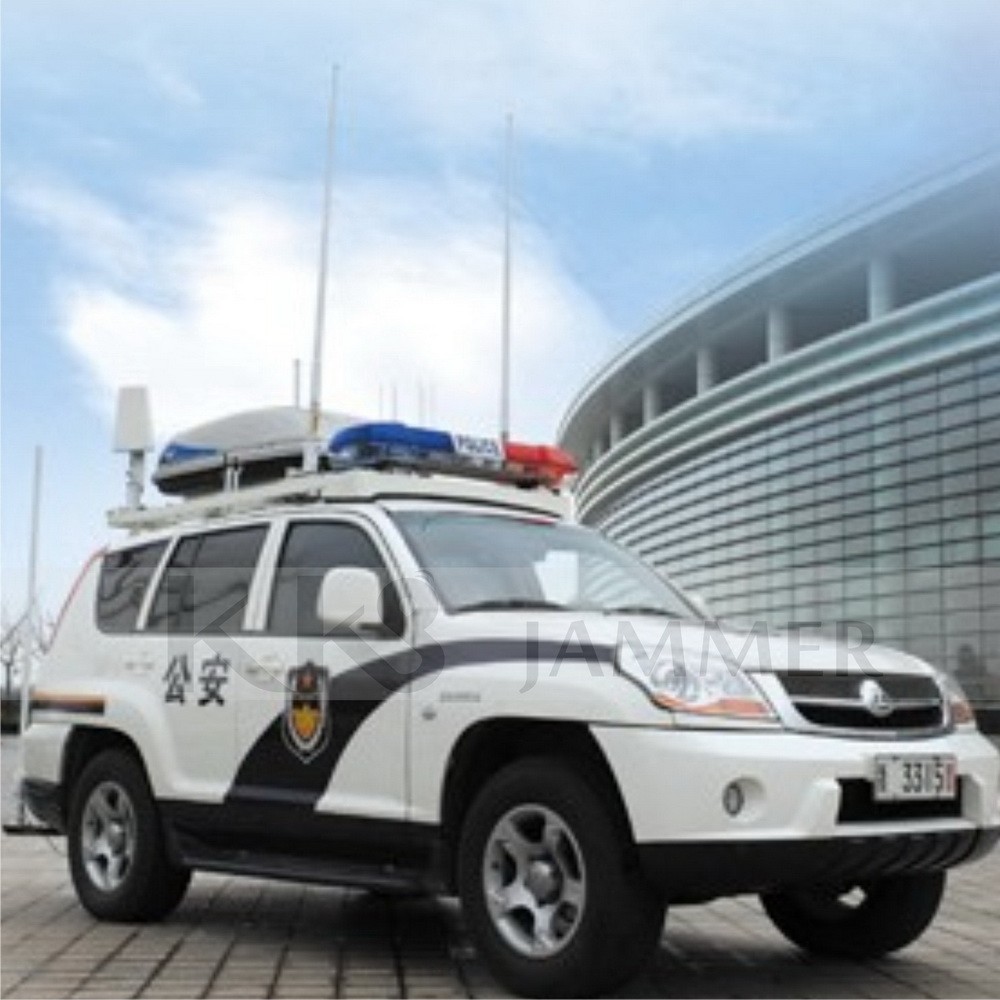

Military Convoy protection
VIP Protection
RIOT Control
S.W.A.T Team
EOD Operations
Electronic countermeasure, etc
Technical Specifications:
RF Characteristics:
Jamming frequency ranges: 20MHz to 6000MHz, full band jamming, no gaps
Total RF Output Power: Up to 800Watts
Internal Modulation: FM Hopping Frequency and Sweeping
Signal Source: PLL Synthesized & DDS
Sweep rate: Fixed
Jamming Range: 30m to 200m (depending on transmitter frequency and output power, distance to receiver, and obstacles between, etc)
Jamming target: Jamming target: RCIED Remote Control, FM Radio, VHF, UHF, Walkie Talkie, Lojack, Wireless Bugs, Wireless TV, NEXTEL, CDMA, GSM, DCS, PCS, 3G, UMTS, WCDMA, WIFI, 4G LTE, 4G WIMAX, etc customized
Power Supply: 110/220VAC& 28VDC
Power Consumption: 2400W
Power Amplifier Protections:
A. Over-Heat protection-Thermal protector
B. Over current protection
C. High input Voltage and low Voltage protection
D. VSWR protection: against antenna miss-match including open and short circuit
Antennas: External Omni-Directional Antenna, 360 degree protection
Integrated backup Battery:
Battery type: Lithium Iron Battery
Battery capacity: 28V-100A
Battery working time: one hour
Remote Control:
Wire Control Panel or Remote Monitoring software (Optional)
A. Output power LCD Indication
B. Output power adjusting by LCD
C. Output power on/off per band
D. Jamming frequency setting by LCD Panel
Remote Control Interface: RJ45/RS232/RS485
Physical Data:
Dimensions: 625*510*700mm
Net Weight: Approx.120kg
Environment of operation:
Operating Temp: -10ºC - +55ºC
Humidity: 5% - 90%
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() | |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
