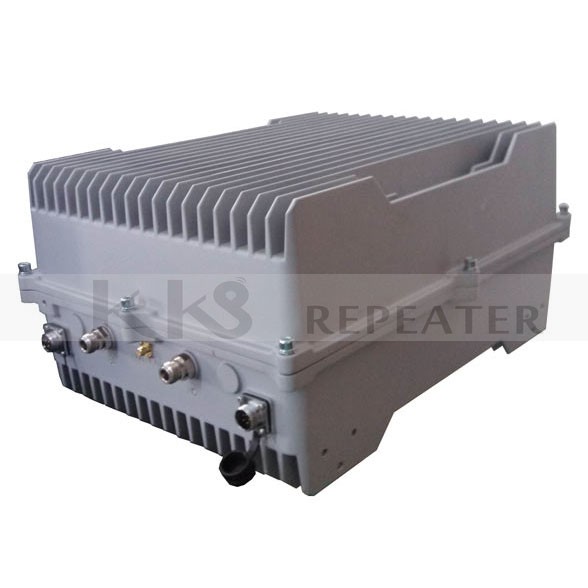

Dual Band GSM900 & DCS1800 Outdoor Mobile Repeater
Model: KR-3090GW/ KR-3390GW/ KR-3790GW/ KR-4090GW/ KR-4390GW
Introductions
The GSM&WCDMA Dual-Band RF Repeater is designed to provide a more cost-effective solution than adding a new Base Transceiver Station (BTS) to improve signal coverage and communication quality in GSM900&WCDMA2100 system. And its easy installation and maintenance can help carrier get fast return.

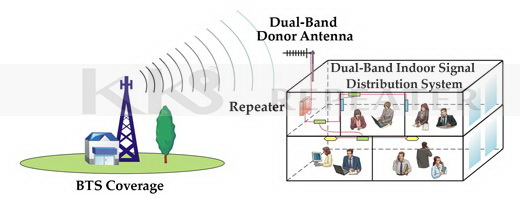

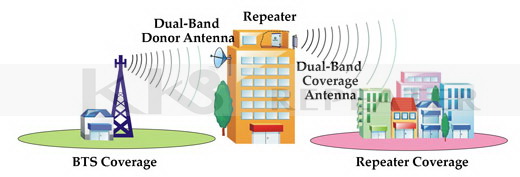

The repeater is working as a relay between the BTS and mobiles. It receives the low-power signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Coverage Antenna to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
Features
nBand-Selective RF Repeater: to amplify all signals in the whole band (bandwidth is customized);
nAluminum-alloy casing with IP65 protection has high resistance to dust, water and corroding;
nHighly selective channel selector can process 12 channels simultaneously;
nNo interference to BTS by adopting linear amplifier with high gain and low noise;
nAdopting filter with highly selectivity and low insertion loss eliminates interference between uplink and downlink;
nRS-232 port provides a link to a notebook for local supervision or to the built-in wireless modem to communicate with the NMS (Network Management System) that can remotely supervise repeater’s working status and download operational parameters to the repeater.
Applications
To expand signal coverage or fill signal blind area where GSM and WCDMA signal is weak or unavailable.
Outdoor: Airports, tourism regions, golf courses, tunnels, factories, mining districts, villages, …
Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots, etc.
Specifications
Items
Specifications
Frequency
Uplink
Downlink
890~915&1920~1980MHz (Customized)
935~960&2110~2170MHz (Customized)
Output power
30/33/37/40/43dBm
Gain
≥ 90dB
ALC/AGC
Supported
Gain control range
30 dB/1 dB step
Ripple in band
≤ 3.0dB
Noise figure
≤ 5.0dB
VSWR
≤ 1.5:1
Transmission delay
≤ 5μS
Out band rejection
F(edge)±400KHz≥20dBc
F(edge)±600KHz≥30dBc
F(edge)±1MHz≥40dBc
F(edge)±5MHz≥50dBc
Spurious emission
≤-36dBm/9KHz-1GHz
≤ -30dBm/1GHz-12.75GHz
Inter-modulation
≤ -37dBc
Max. non-destructive input power
-10dBm
Impedance
50 W
Operating temperature range
-25 ºC to +55 ºC
Relative humidity
0 ~ 95%
Applications
IP65
Monitoring and control
RS232 (local)
GSM wireless modem (remote)
Dimensions
690mm*420mm*260mm;
Weight
≤45 kg
Power supply
AC220V ±20%, 50Hz ±10%
Power consumption rating
≤300W
RF Connectors type
N female
Mounting
Wall or pole
