MODEL:	KJ-50M3D
SIZE:	960*400*230mm
PACKAGE:	Neutral packing

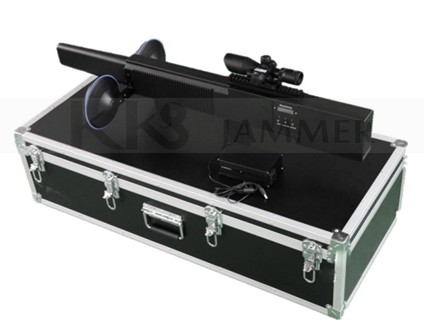

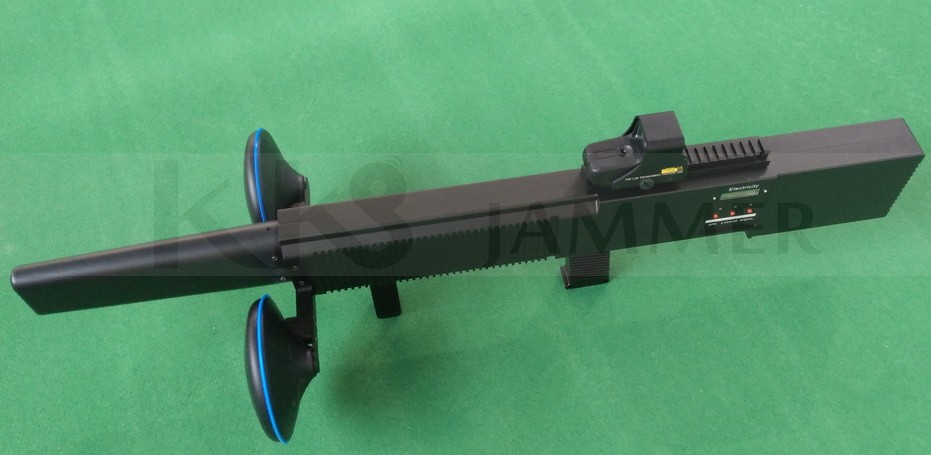

New Portable Drone Jammer / RF Gun

Model: KJ-50M3D

Introductions:

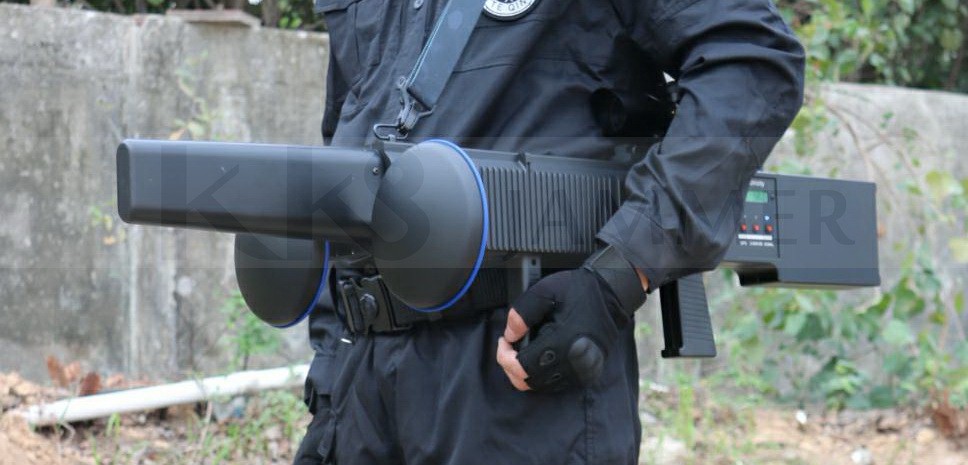

The Jammer is a Manpack Portable Drone Jammer / RF Gun to shoot down the commercial drones, uses state-of-art technology for maximum performance and reliability

Features:

Frequency bands and output power selectable;

Integrated main equipment, battery, and antennas which increase mobility of the device;

Different frequency bands can be controlled independently by different switches;

AC or DC power supply can be selected;

Power Amplifiers protection design ensures the working reliability of the device;

Built-in battery can support the Jammer to work 2 hours.

Applications:

To block commercial used drones for any sensitive locations

Technical Specifications:

Total RF output power: 50W

Internal Modulation: FM Hopping Frequency and Sweeping

Signal Source: PLL Synthesized

Sweep rate: Fixed

Effective jamming range: up to 2km depending on the target signal strength;

Jamming target: commercial used drones/UAVs

Power supply: 220VAC/110VAC, 24VDC

Power Consumption: 180w

Continuous working hours: Long time (AC 220V/110V), 2 hours by Battery

Battery capacity: 24V15A

Antennas type: high gain directional antennas

Dimension: 960*400*230mm

Net Weight: 7kgs;

Operating Temp: -20ºC - +50ºC

Humidity: 5% - 95%

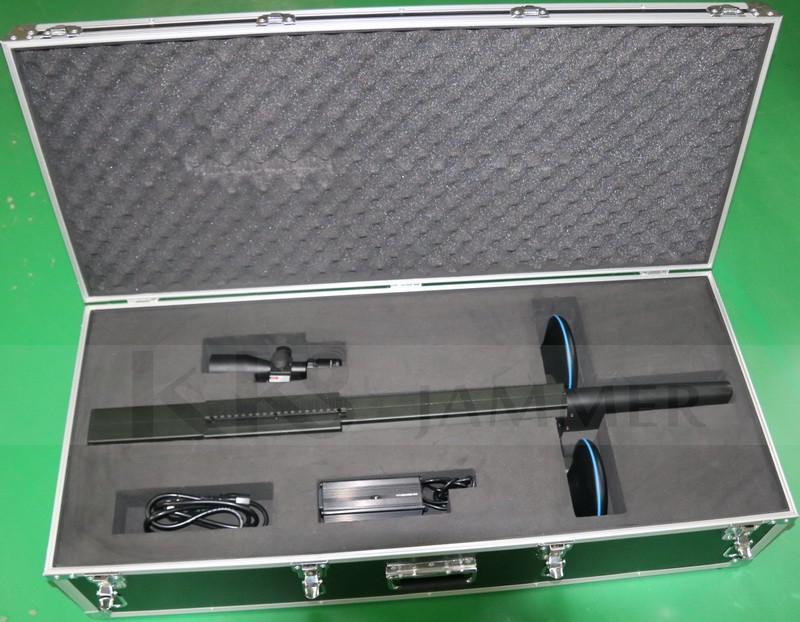

System Included:

A.     1pcs Portable Drone Jammer;

B.     1pcs power supply adaptor;

C.     1pcs telescopic sight.
